Steering Wheel: Assembly

  1. Installation of the steering wheel ornament No. 1
    1. Engage the two tabs and the guide and install the steering wheel ornament No. 1 onto the steering wheel assembly.

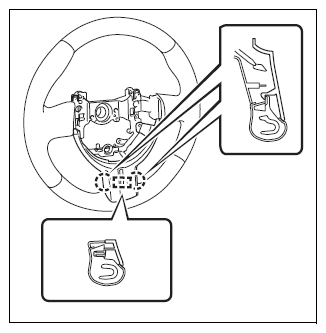

      Fig 1: Installing Steering Wheel Ornament No. 1
      G10215776Courtesy of SUBARU OF AMERICA, INC.
  2. Installation of the steering wheel boss cover LWR
    1. Engage the two tabs and install the steering wheel boss cover LWR onto the steering wheel assembly.
    2. Install the two screws.

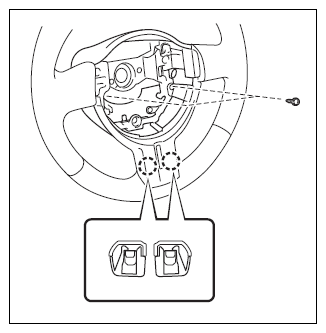

      Fig 2: Installing Steering Wheel Boss Cover LWR Screws
      G10215777Courtesy of SUBARU OF AMERICA, INC.
  3. Installation of the steering shake damper
    1. Install the steering shake damper onto the steering wheel assembly and fasten the two screws.

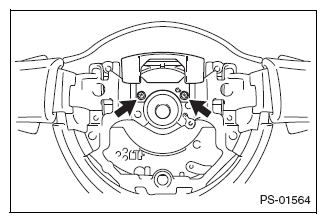

      Fig 3: Locating Steering Shake Damper Screws
      G08555443Courtesy of SUBARU OF AMERICA, INC.
