Steering Wheel: Disassembly

  1. Removal of the steering shake damper
    1. Undo the two screws to remove the steering shake damper from the steering wheel assembly.
      Fig 1: Locating Steering Shake Damper Screws
      G08555443Courtesy of SUBARU OF AMERICA, INC.
  2. Removal of the steering wheel boss cover LWR
    1. Remove the two screws.
    2. Unhook the two tabs to remove the steering wheel boss cover LWR from the steering wheel assembly.

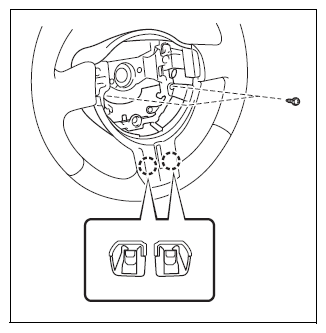

      Fig 2: Removing Steering Wheel Boss Cover LWR Screws
      G10215774Courtesy of SUBARU OF AMERICA, INC.
  3. Removal of the steering wheel ornament No. 1
    1. Unhook the two tabs and the guide to remove the steering wheel ornament No. 1 from the steering wheel assembly.

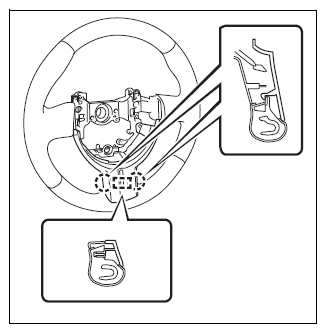

      Fig 3: Removing Steering Wheel Ornament No. 1
      G10215775Courtesy of SUBARU OF AMERICA, INC.
