Exploded View
Exploded View
Fig 1: Exploded View Of Manual Transmission Assembly With Torque Specifications (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

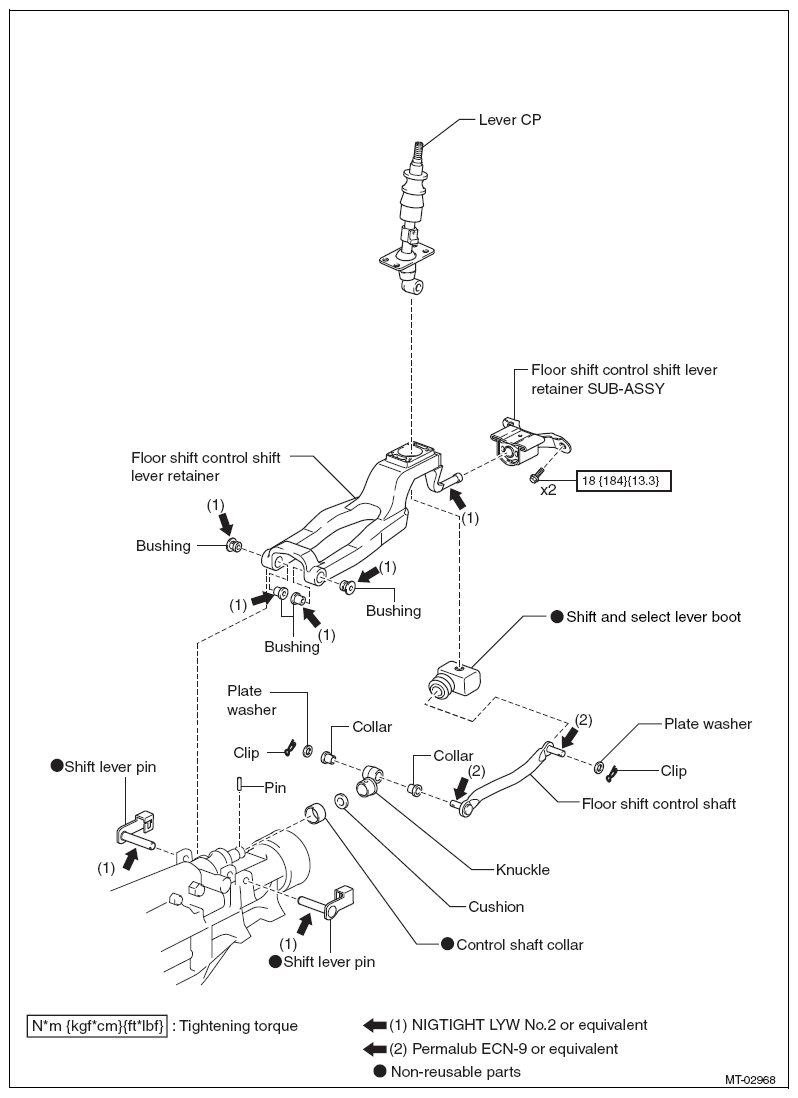

Fig 2: Exploded View Of Manual Transmission Assembly With Torque Specifications (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Fig 3: Exploded View Of Manual Transmission Assembly With Torque Specifications (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
