Exploded View

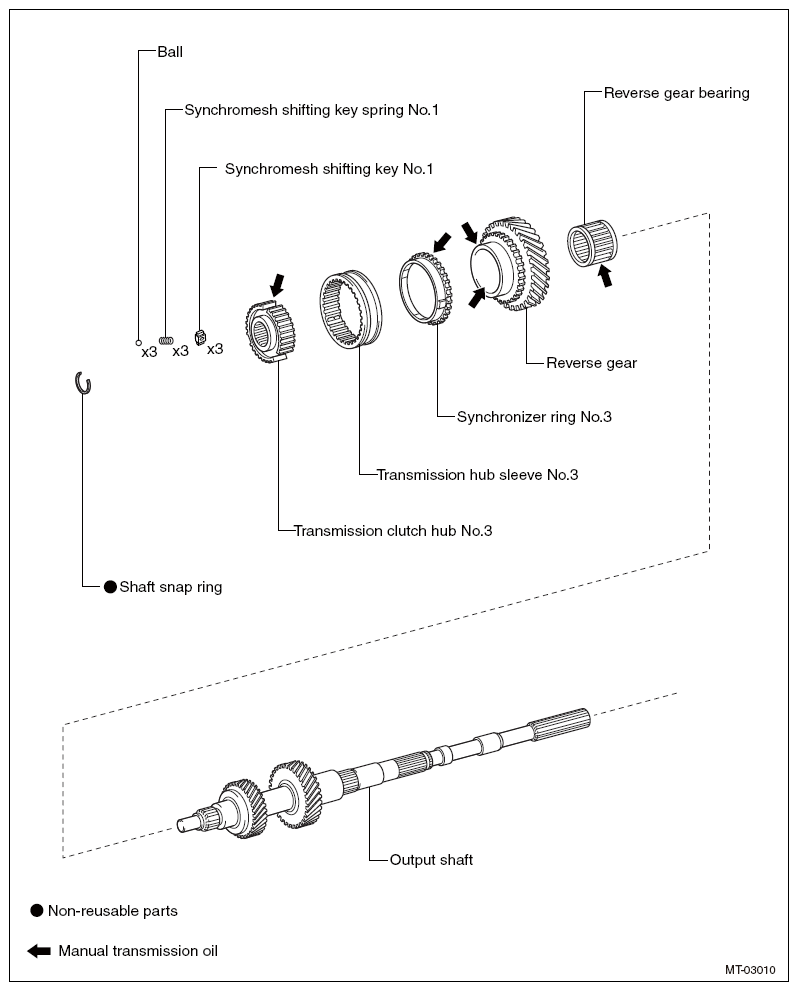

Fig 1: Exploded View Of Output Shaft Assembly
G08555074Courtesy of SUBARU OF AMERICA, INC.
NOTE: Be sure to use the recommended product or the substitute product for manual transmission oil. (Refer to MANUAL TRANSMISSION OIL  )

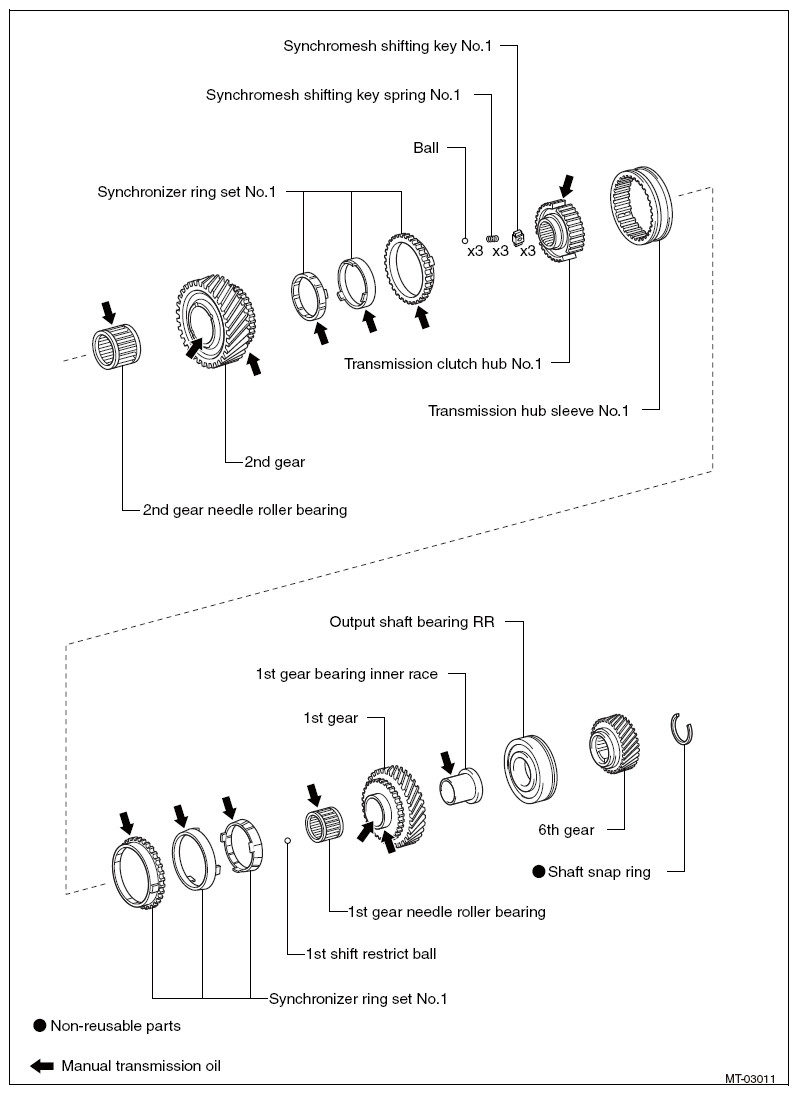

Fig 2: Exploded View Of Output Shaft Assembly
G08555075Courtesy of SUBARU OF AMERICA, INC.
NOTE: Be sure to use the recommended product or the substitute product for manual transmission oil. (Refer to MANUAL TRANSMISSION OIL  )
