Fuel Pump

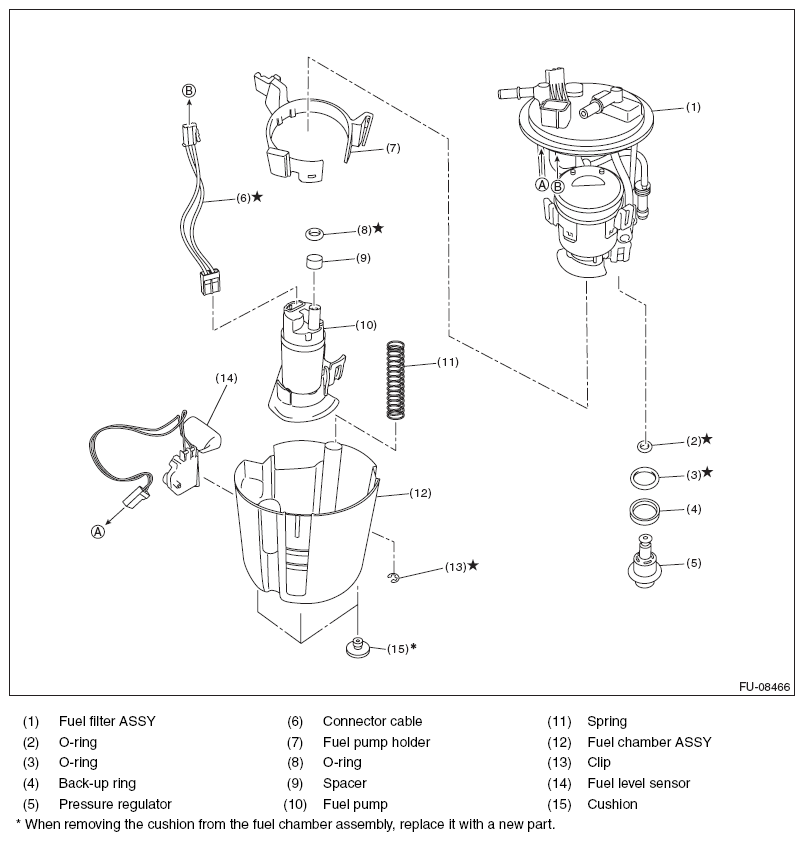

Fig 1: Identifying Fuel Pump Related Components
G10318216Courtesy of SUBARU OF AMERICA, INC.
