Front Disc Brake Assembly: Installation

WARNING: This page is about a different car, the 2015 Subaru XV Crosstrek and 2015 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Before installation, remove the pad clip and remove mud, foreign matter and rust from the caliper body assembly and the support - front disc brake.

Check each part. < Ref. to INSPECTION , Front Disc Brake Assembly.>
Apply a thin coat of grease to the support - front disc brake.
Grease:

An item contained in the pad kit, Molykote M7439 or equivalent

Fig 1: Applying Thin Coat Of Grease To Support - Front Disc Brake
Courtesy of SUBARU OF AMERICA, INC.
Install the support - front disc brake to the housing assembly - front axle.
Tightening torque:

Mounting bolt: 80 N.m (8.16 kgf-m, 59.0 ft-lb)
Apply a thin coat of grease to the pad clip.
Grease:

An item contained in the pad kit, Molykote M7439 or equivalent

Fig 2: Identifying Rear Brake Pad Of Thin Coat On Grease Applying Area
Courtesy of SUBARU OF AMERICA, INC.
Install the pad clip.
Press back the piston with a disc brake piston tool as needed.
CAUTION: When pressing back the piston, the clearance between pad and disc rotor becomes large, which makes the brake pedal effort softer.
After the installation of front wheel, be sure to perform the adjustment of the clearance and the pedal effort by depressing the brake pedal several times.
Install the brake pad to the support - front disc brake.
CAUTION:
- Be sure to install so that the pad return spring faces the input side of the direction of brake rotor rotation, as shown in the figure.
- Correctly install the pad return spring to the supporting surface of the pad clip as shown in the figure.
- If the pad return spring is deformed or damaged, replace the brake pad with a new part.

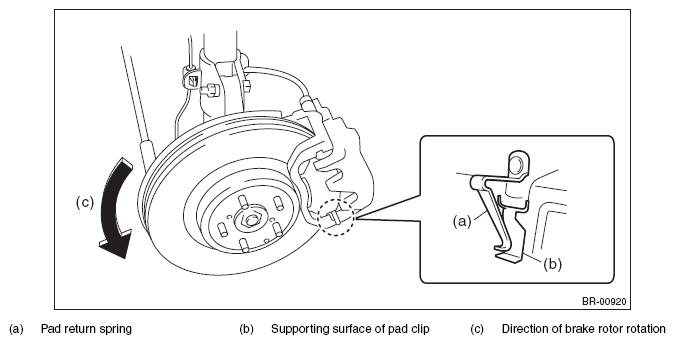

Fig 3: Installing Brake Pad To Support - Front Disc Brake
Courtesy of SUBARU OF AMERICA, INC.

NOTE: Install the brake pad indicator in proper direction.

Fig 4: Identifying Brake Pad Indicator In Proper Direction
Courtesy of SUBARU OF AMERICA, INC.
Install the caliper body assembly to the support - front disc brake.
Tightening torque:

Caliper bolt: 27 N.m (2.75 kgf-m, 19.9 ft-lb)
Connect the brake hose using a new brake hose gasket.
Tightening torque:

Union bolt: 26 N.m (2.65 kgf-m, 19.2 ft-lb)
Bleed air from the brake system. < Ref. to BRAKE LINE , PROCEDURE, Air Bleeding.>
Install the front wheels.
Tightening torque:

Except for C4 model: 120 N.m (12.24 kgf-m, 88.5 ft-lb)

C4 model: 100 N.m (10.20 kgf-m, 73.8 ft-lb)
