Steering Column: Installation
CAUTION:
If the steering wheel and steering angle sensor are removed, perform the following VDC setting mode.
- Model without EyeSight: VDC sensor midpoint setting mode < Ref. to VDC SENSOR MIDPOINT SETTING MODE (MODELS WITHOUT EYESIGHT) , ADJUSTMENT, VDC Control Module and Hydraulic Control Unit (VDCCM&H/U). >
- Model with EyeSight: Neutral of Steering Angle Sensor & Lateral G Sensor 0 point setting < Ref. to NEUTRAL OF STEERING ANGLE SENSOR & LATERAL G SENSOR 0 POINT SETTING (MODEL WITH EYESIGHT) , ADJUSTMENT, VDC Control Module and Hydraulic Control Unit (VDCCM&H/U). >
- Model with EyeSight: Longitudinal G sensor & lateral G sensor 0 point setting < Ref. to LONGITUDINAL G SENSOR & LATERAL G SENSOR 0 POINT SETTING MODE (MODEL WITH EYESIGHT) , ADJUSTMENT, VDC Control Module and Hydraulic Control Unit (VDCCM&H/U). >

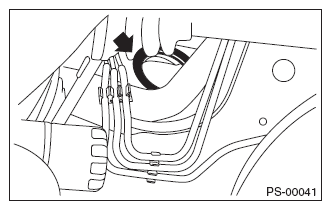

- Install the grommet to the toe board.
- Insert the end of the column assembly - steering into the toe board grommet.
- Tighten the column assembly - steering installation bolt located under the beam COMPL - steering with the tilt lever fixed.
Tightening torque:
20 N.m (2.04 kgf-m, 14.8 ft-lb)
- Connect all connectors located under the beam COMPL - steering.
- Install the airbag module. < Ref. to INSTALLATION , Driver's Airbag Module. >
- Install the knee airbag module. < Ref. to INSTALLATION , Knee Airbag Module. >
- Install the cover assembly - instrument panel LWR driver INN and OUT.
- Install the universal joint assembly - steering. < Ref. to
INSTALLATION , Universal Joint. >CAUTION:
- Always install the universal joint assembly - steering after installing the steering column to avoid damage to the universal joint assembly - steering.
- Be sure to follow the tightening order and tightening torque of the universal joint assembly - steering to avoid the steering effort from becoming heavy.
- Align the center position of the steering roll connector. < Ref. to ADJUSTMENT , Roll Connector. >
- Install the steering wheel. < Ref. to INSTALLATION , Steering Wheel. >
