Front Strut: Assembly

Before assembly, check each part. < Ref. to INSPECTION , Front Strut. >
Using a coil spring compressor, compress the coil spring - front.

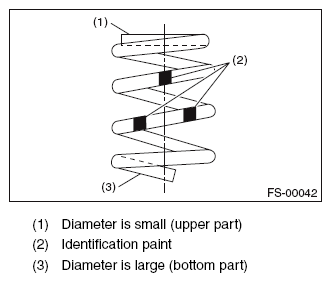

NOTE: Make sure that the vertical installation direction of the coil spring - front is as shown in the figure.

Fig 1: Identifying Coil Spring - Front
Set the front coil spring correctly so that its end face (a) contacts the vertical surface (b) of the spring seat - front strut UPR as shown in the figure.

Fig 2: Identifying Spring Seat - Front Strut LWR
Install the dust cover - inner and the helper - front strut to the piston rod.
Pull the piston rod fully upward, and install the spring seat.

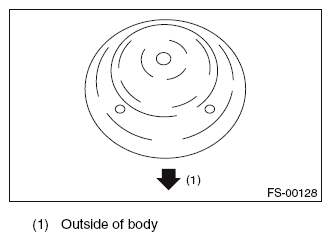

NOTE: Position the spring seat - front strut UPR as shown in the figure.

Fig 3: Positioning Spring Seat - Front Strut UPR
Install the spacer - front strut and the strut mount - front to the piston rod, and temporarily tighten a new self-locking nut.
Using a hexagon wrench to prevent strut rod from turning, tighten the new self-locking nut with ST.
Preparation tool:

ST: STRUT MOUNT SOCKET (20399AG000)

Tightening torque:

55 N.m (5.61 kgf-m, 40.6 ft-lb)

Fig 4: Tightening Self-Locking Nut Using ST
Loosen the coil spring compressor carefully.
