Front Strut: Removal

  1. Lift up the vehicle, and then remove the front wheels.
  2. Remove the front strut assembly.
    1. Place an alignment mark (a) on the adjusting bolt and the strut.
    2. Remove the brake hose bracket.
    3. Remove the clamp of ABS wheel speed sensor harness.
    4. Remove the adjusting bolts and flange bolts for the strut assembly.
      CAUTION: While holding the head of the adjusting bolt, loosen the flange nut.

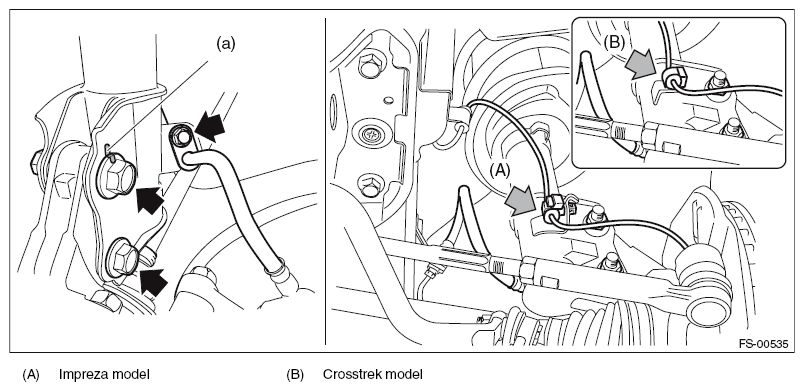

      Fig 1: Locating Strut Assembly Adjusting And Flange Bolts
      G10323275
    5. Remove the three nuts securing strut mount to body.

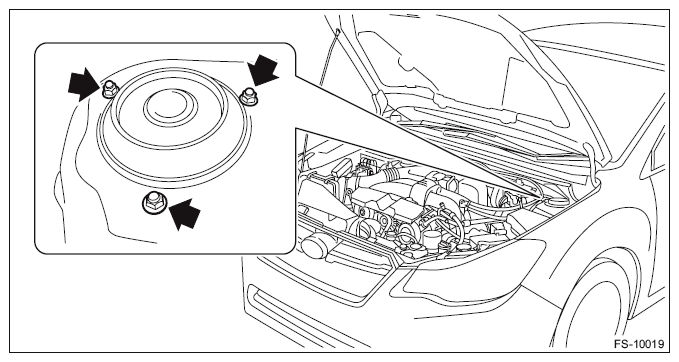

      Fig 2: Locating Strut Mount Nuts
      G10323276
