Wheel Alignment: Inspection: Caster

  1. Place the front wheel on the turning radius gauge. Make sure the ground contact surfaces of the front and rear wheels are at the same height.
  2. Set the adapter into the center of wheel, and then set the wheel alignment gauge.

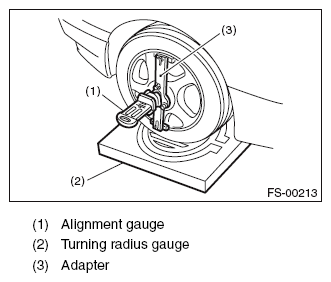

    Fig 1: Checking Front Wheel Caster
    G10323225
  3. Measure the caster angle in accordance with the operation manual for wheel alignment gauge.
    Model Tire size Caster
    Impreza model P195/65R15
    P205/55R16
    P205/50R17    		 6°00'
    Crosstrek model P225/55R17
    225/55R17    		 5°60'
