Model Without Push Button Ignition Switch

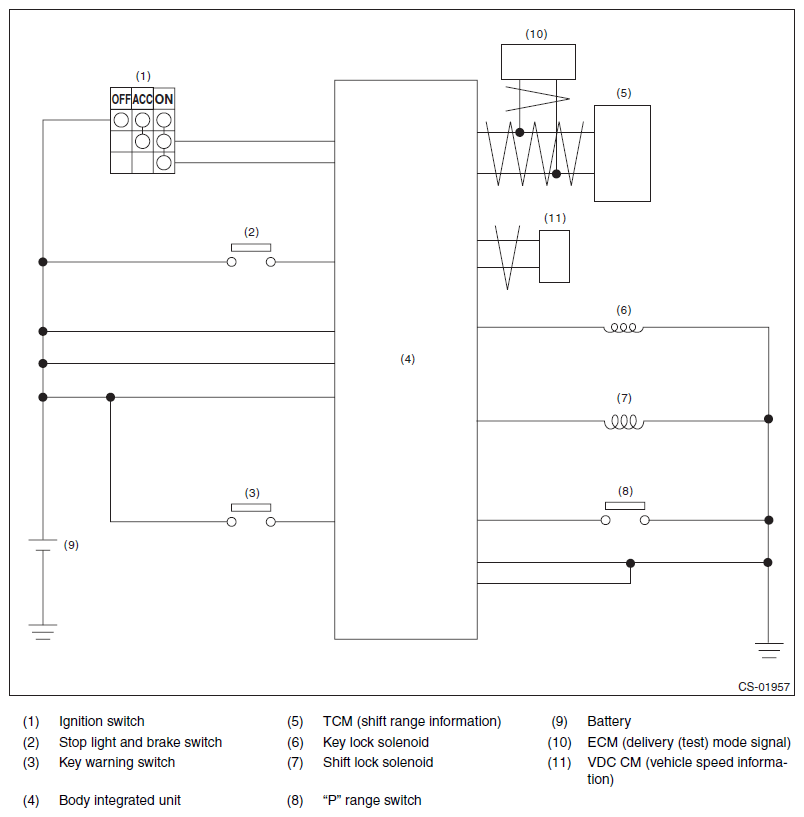

Fig 1: Ignition Switch - Circuit Diagram (Model Without Push Button Ignition Switch)

G10319259

Courtesy of SUBARU OF AMERICA, INC.
