Crankshaft Position Sensor: Installation

Install in the reverse order of removal.

Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

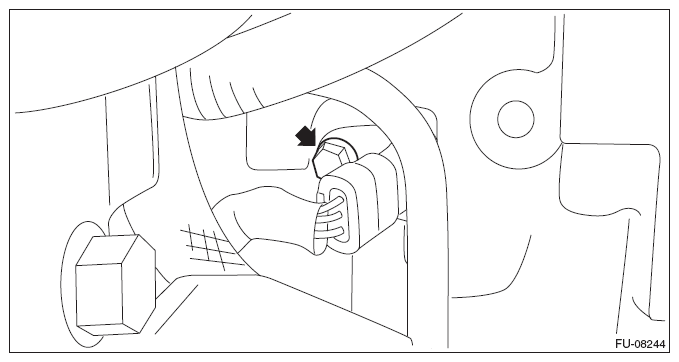

Fig 1: Locating Crankshaft Position Sensor Bolt

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

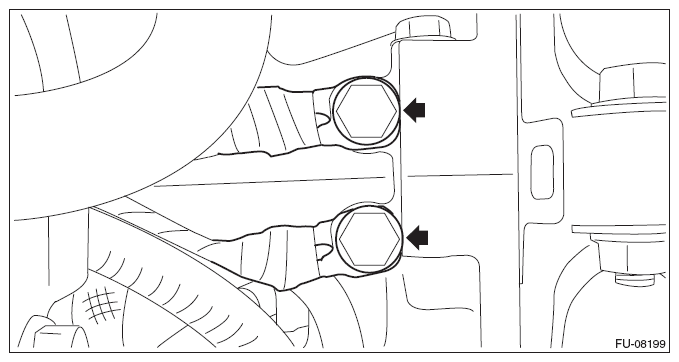

Fig 2: Locating Engine Assembly Bolts

Courtesy of SUBARU OF AMERICA, INC.
