Engine Control Module (ECM): Removal

Disconnect the ground cable from battery. < Ref. to BATTERY , NOTE, Note. >
NOTE: For the 12 volt engine restart battery, disconnect the ground terminal from 12V engine restart battery sensor.
Remove the glove box. < Ref. to REMOVAL , Glove Box. >
Disconnect the connectors from ECM and the hybrid powertrain control module.

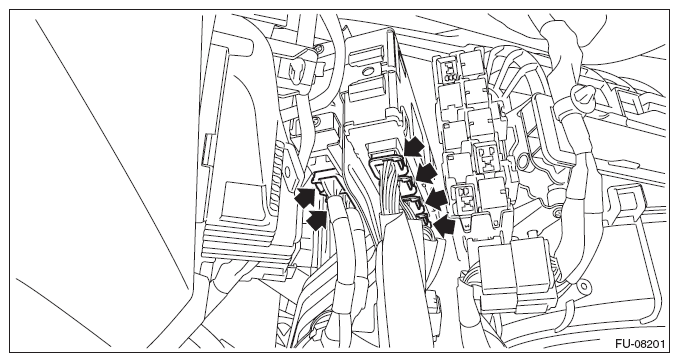

Fig 1: Locating Connectors From ECM And Hybrid Powertrain Control Module
Courtesy of SUBARU OF AMERICA, INC.
Remove the clip securing the linear solenoid relay from the bracket.

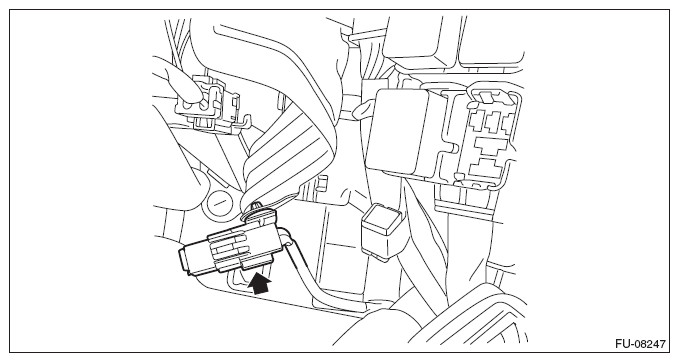

Fig 2: Locating Clip Securing Linear Solenoid Relay From Bracket
Courtesy of SUBARU OF AMERICA, INC.
Push down the claws, and remove the relay block.

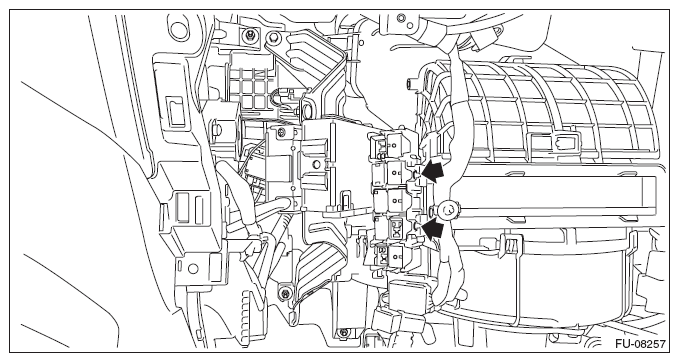

Fig 3: Locating Claws And Relay Block
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts and nuts, and remove the ECM.

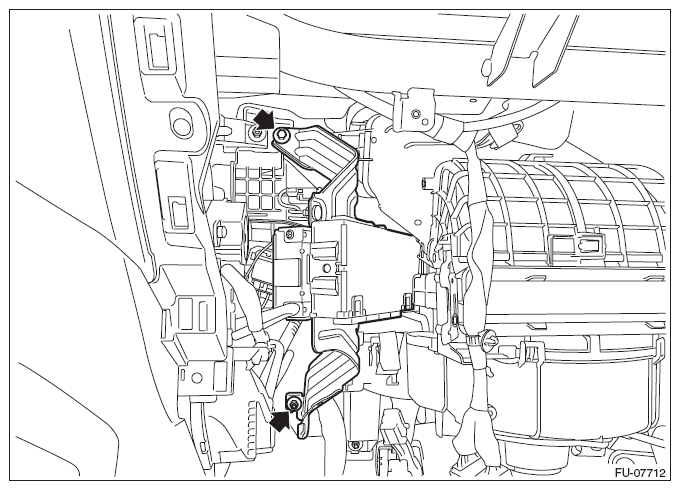

Fig 4: Locating Bolts And Nuts
Courtesy of SUBARU OF AMERICA, INC.
Remove the hybrid powertrain control module.

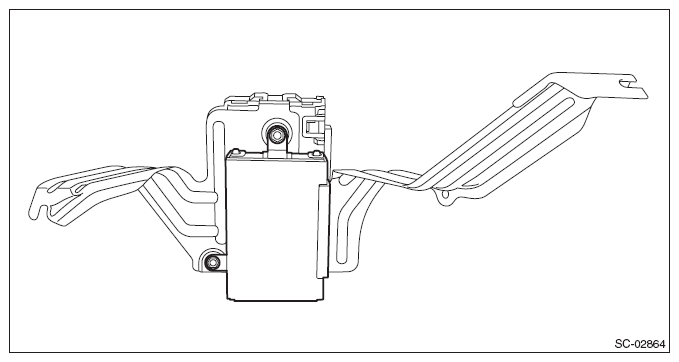

Fig 5: Identifying Hybrid Powertrain Control Module
