Fuel Tank: Installation

Support the fuel tank with a transmission jack, set the fuel tank in place, and temporarily tighten the bolts of the fuel tank band.
WARNING: A helper is required to perform this work.

Fig 1: Locating Fuel Tank Band Bolts
Courtesy of SUBARU OF AMERICA, INC.

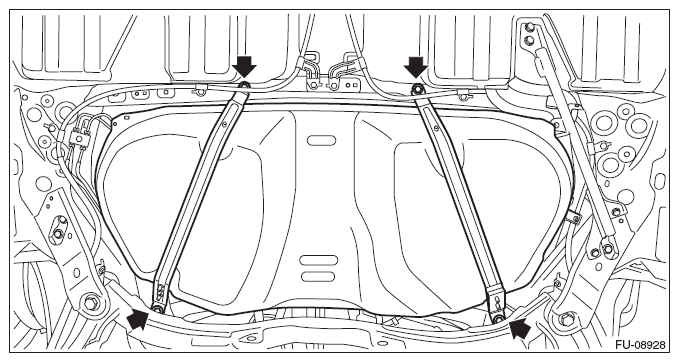

Tighten the bolts of the fuel tank band in the order shown in the figure.
Tightening torque:

33 N.m (3.4 kgf-m, 24.3 ft-lb)

Fig 2: Locating Fuel Tank Band Bolts
Courtesy of SUBARU OF AMERICA, INC.

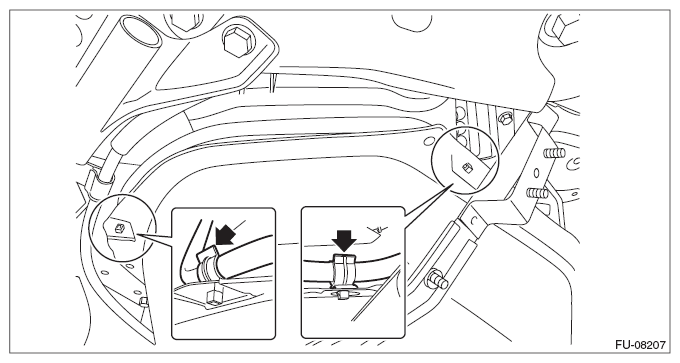

Install the purge tube to the tube clamp.

Fig 3: Locating Purge Tube To Tube Clamp
Courtesy of SUBARU OF AMERICA, INC.
Connect the vent tube to the vent hose.

Fig 4: Locating Vent Tube Clamp Of Vent Hose
Courtesy of SUBARU OF AMERICA, INC.

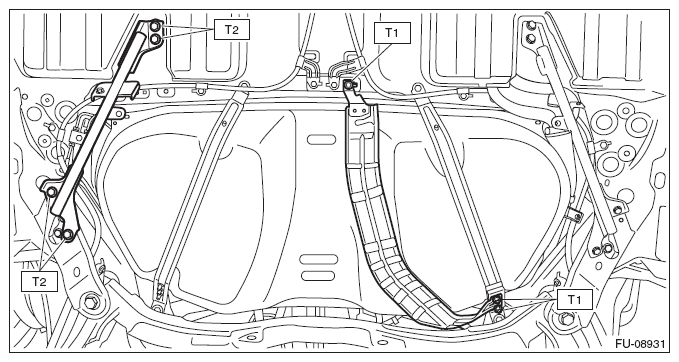

Install the heat shield cover and the stay - rear frame COMPL RH.
Tightening torque:

T1: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

T2: 33 N.m (3.4 kgf-m, 24.3 ft-lb)

Fig 5: Installing Heat Shield Cover And Stay - Rear Frame COMPL RH
Courtesy of SUBARU OF AMERICA, INC.

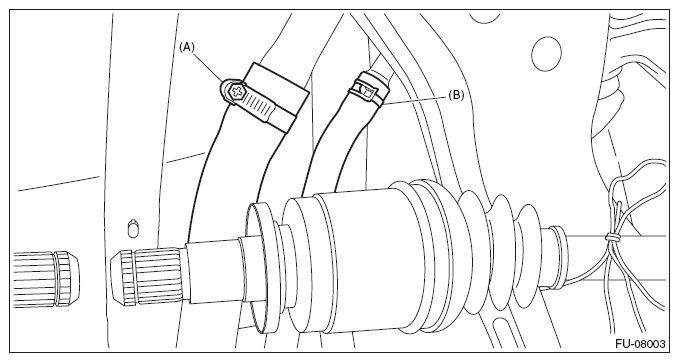

Securely insert the fuel filler hose (A) and evaporation hose (B) until the hose end contacts the spool, then attach the clamp or clip as shown in the figure.
Tightening torque:

2.5 N.m (0.3 kgf-m, 1.8 ft-lb)

Fig 6: Identifying Fuel Filler Hose And Evaporation Hose
Courtesy of SUBARU OF AMERICA, INC.

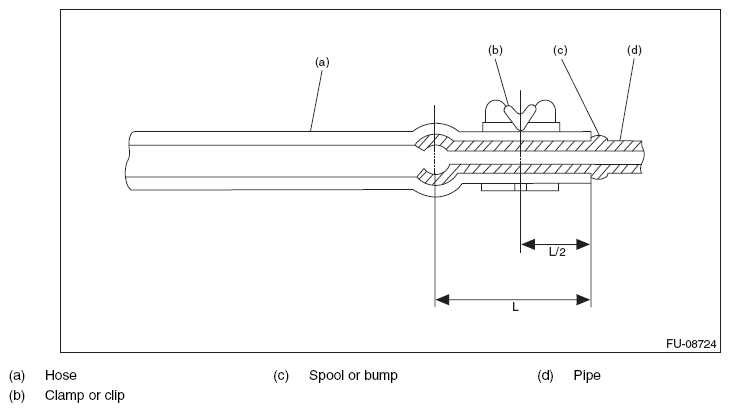

Fig 7: Identifying Clamp And Clip Dimension
Courtesy of SUBARU OF AMERICA, INC.
Install the fuel tank protector. < Ref. to INSTALLATION , Fuel Tank Protector. >
Install the rear differential. < Ref. to INSTALLATION , Rear Differential (VA-type). >
Install the rear exhaust pipe and muffler. < Ref. to INSTALLATION , Rear Exhaust Pipe. > < Ref. to INSTALLATION , Muffler. >
Connect the quick connector of the fuel delivery tube.
CAUTION:
- Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
- When connecting the quick connector, make sure to insert it all the way in before locking the slider.
- When it is difficult to lock the slider, check that the connector is fully inserted.
- After locking the slider, check again that the quick connector is securely connected.

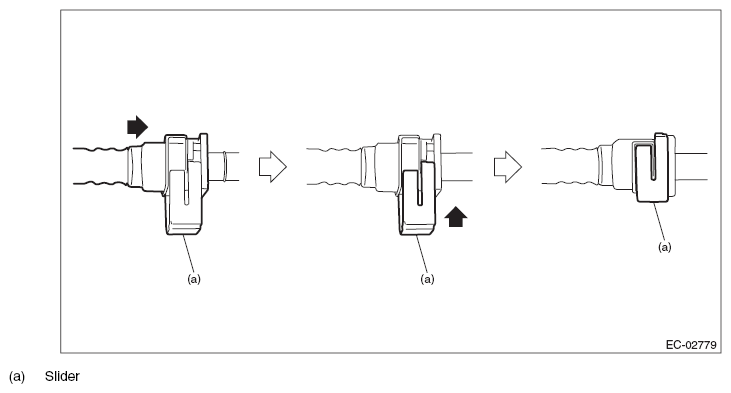

NOTE: Connect the quick connector as shown in the figure.

Fig 8: Connecting Quick Connector Of Fuel Delivery Tube
Courtesy of SUBARU OF AMERICA, INC.

Fig 9: Locating Quick Connector On Fuel Delivery Tube
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to the fuel sub level sensor.

Fig 10: Locating Fuel Sub Level Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the service hole cover of fuel sub level sensor.

Fig 11: Locating Service Hole Cover Screws Of Fuel Sub Level Sensor
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to the fuel pump.

Fig 12: Locating Fuel Pump Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the service hole cover of fuel pump.

Fig 13: Locating Service Hole Cover Screws Of Fuel Pump
Courtesy of SUBARU OF AMERICA, INC.
Install the rear seat cushion. < Ref. to INSTALLATION , Rear Seat. >
Connect the battery ground terminal. < Ref. to BATTERY , NOTE, Note. >
