Intake Manifold 1

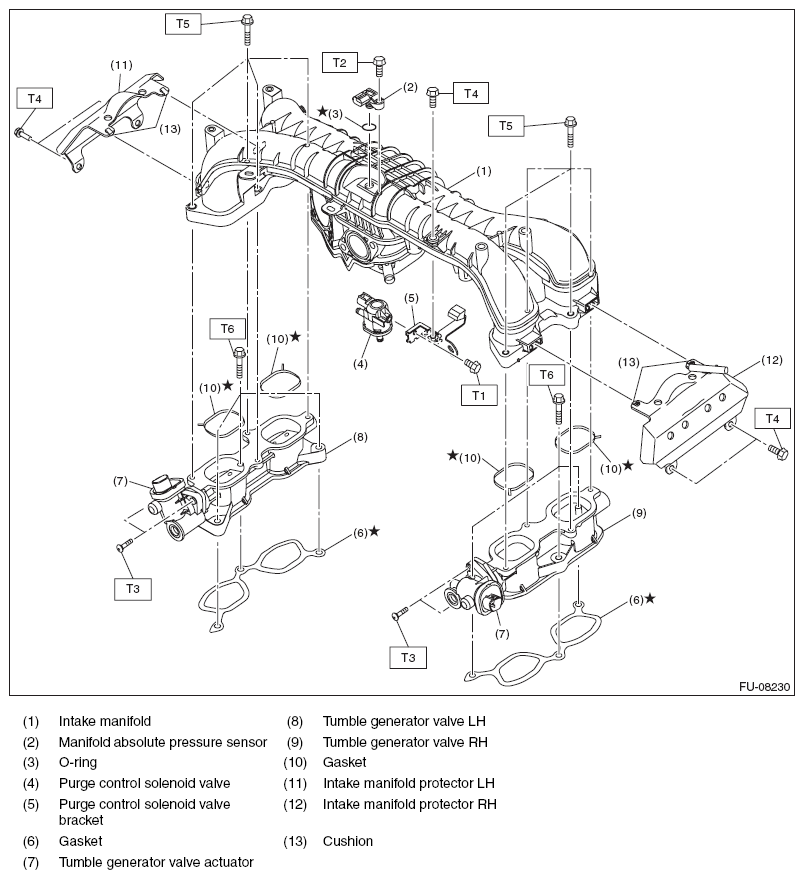

Fig 1: Exploded View Of Intake Manifold 1

G10320497

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 3.4 (0.3, 2.5)

T2: 4 (0.4, 3.0)

T3: 6 (0.6, 4.4)

T4: 6.4 (0.7, 4.7)

T5: 8.3 (0.8, 6.1)

T6: 25 (2.5, 18.4)
