Intake Manifold: Assembly

  1. Install the fuel pipe assembly to the intake manifold.

    Tightening torque:

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

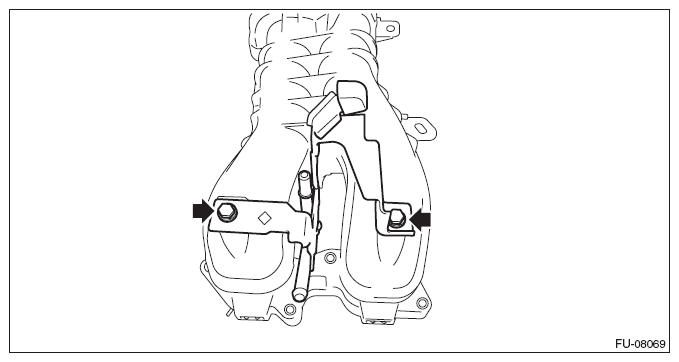

    Fig 1: Locating Fuel Pipe Assembly From Intake Manifold Bolts
    G09487090Courtesy of SUBARU OF AMERICA, INC.
  2. Install the fuel delivery pipe (E) to the clip (F), and connect the quick connector of the fuel delivery pipe (E) to the fuel pipe assembly.
    CAUTION:
    • Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
    • When connecting the quick connector, make sure to insert it all the way in before locking the slider.
    • When it is difficult to lock the slider, check that the connector is fully inserted.
    • After locking the slider, check again that the quick connector is securely connected.
    NOTE: Connect the quick connector as shown in the figure.

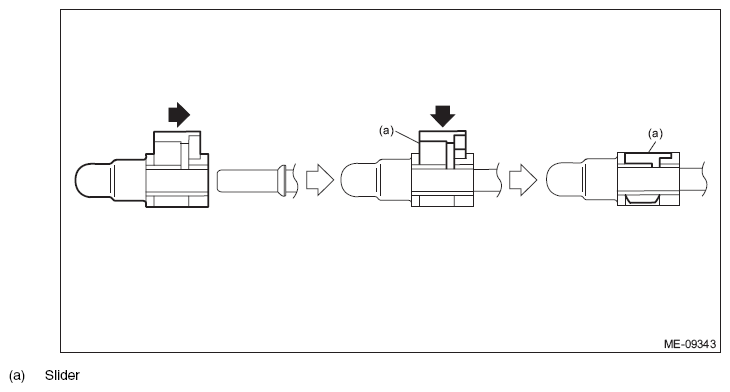

    Fig 2: Connecting Quick Connector
    G10320538Courtesy of SUBARU OF AMERICA, INC.
  3. Install the clip (B) and the clip (C) securing the vacuum hose to the intake manifold, and connect the vacuum hose (D).
  4. Connect the vacuum hose (A) to the intake manifold.

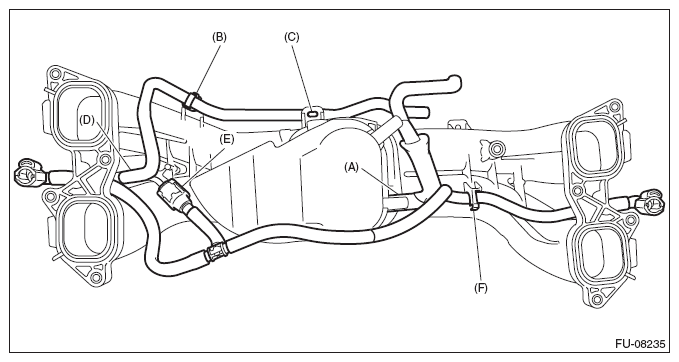

    Fig 3: Connecting Vacuum Hose To Intake Manifold
    G09487089Courtesy of SUBARU OF AMERICA, INC.
  5. Install the PCV hose A. < Ref. to INSTALLATION , PCV Hose. >
  6. Install the EGR pipe and the EGR control valve. < Ref. to INSTALLATION , EGR Pipe. > < Ref. to INSTALLATION , EGR Control Valve. >
  7. Install the manifold absolute pressure sensor. < Ref. to INSTALLATION , Manifold Absolute Pressure Sensor. >
  8. Install the throttle body. < Ref. to INSTALLATION , Throttle Body. >
