Home >> Subaru >> 2016 >> Forester 2.0XT Touring >> Repair and Diagnosis >> Body & Frame >> Windows >> Glass/Window/Mirrors >> General Description >> Components With Torque Specifications >> Mirror

Components With Torque Specifications: Mirror

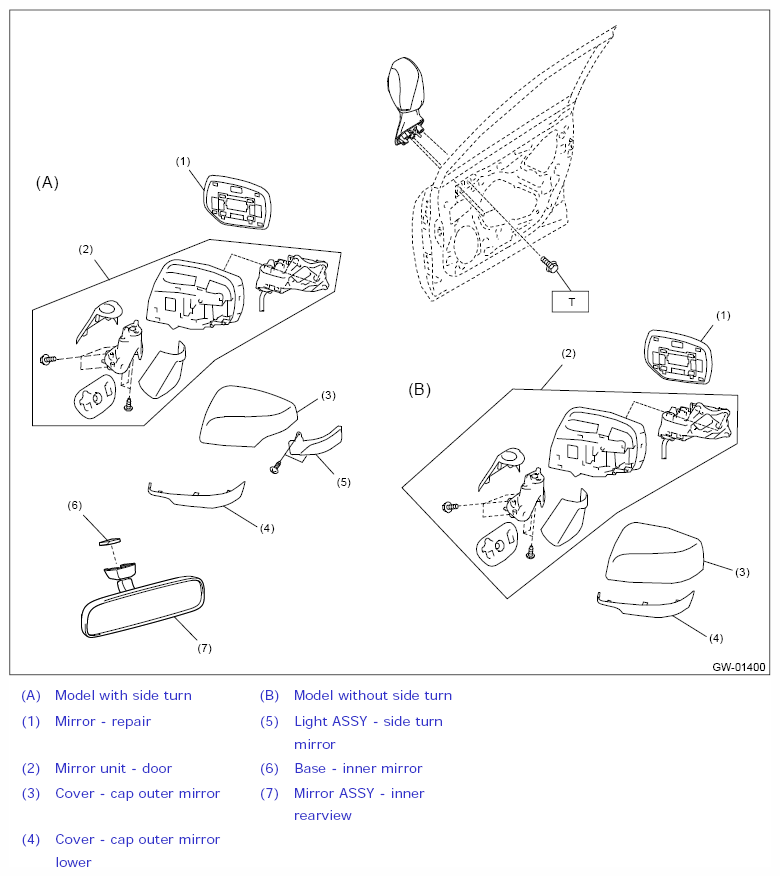

Fig 1: Identifying Mirror Components

G10408400

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.76, 5.5)
