Outer Mirror Assembly: Assembly

Install the light assembly - side turn mirror.

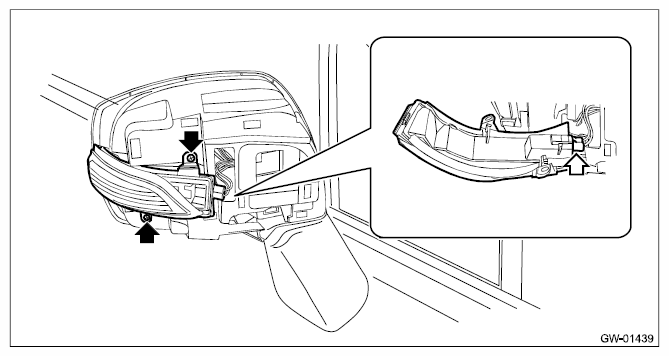

Fig 1: Locating Light Assembly Bolts - Side Turn Mirror
Courtesy of SUBARU OF AMERICA, INC.
Engage the claws into the hole and install the cover - cap outer mirror.

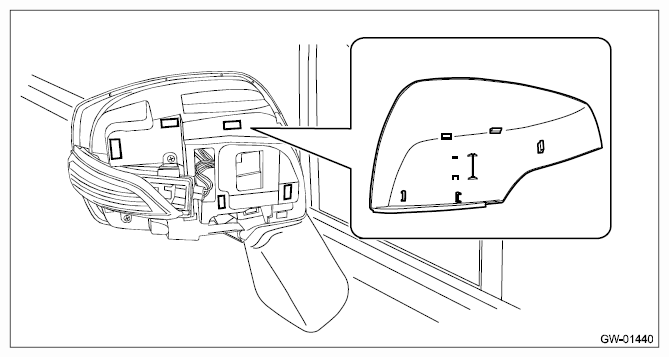

Fig 2: Identifying Cap Outer Mirror Cover Claws
Courtesy of SUBARU OF AMERICA, INC.
Engage the claws into the hole and install the cover - cap outer mirror lower.

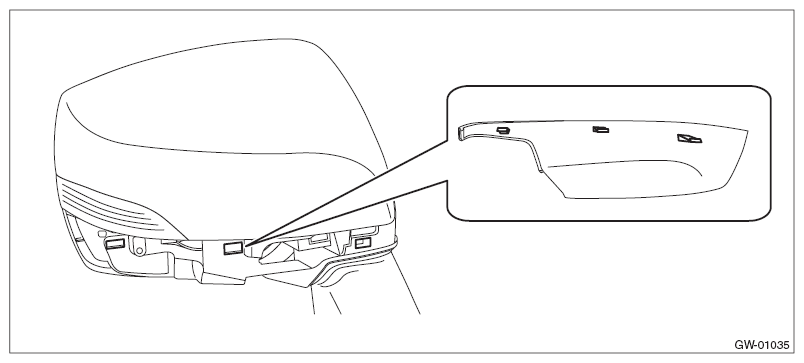

Fig 3: Identifying Cap Outer Mirror Lower Cover Claws
Courtesy of SUBARU OF AMERICA, INC.
Check that all the claws are securely engaged.
Install the mirror - repair in the reverse order of removal.
CAUTION: Be sure to insert the connector and clips securely.
