Outer Mirror Assembly: Disassembly

CAUTION:

When removing the mirror - repair, be careful not to damage the back surface of mirror - repair with a flat tip screwdriver.
When installing the mirror - repair, insert the connector and clip securely.

Operate the remote control mirror switch to face the mirror - repair upward.
Disconnect the ground cable from battery.
Remove the mirror - repair.
1. Using a flat tip screwdriver, release the clip, and slide the mirror - repair downward to remove.

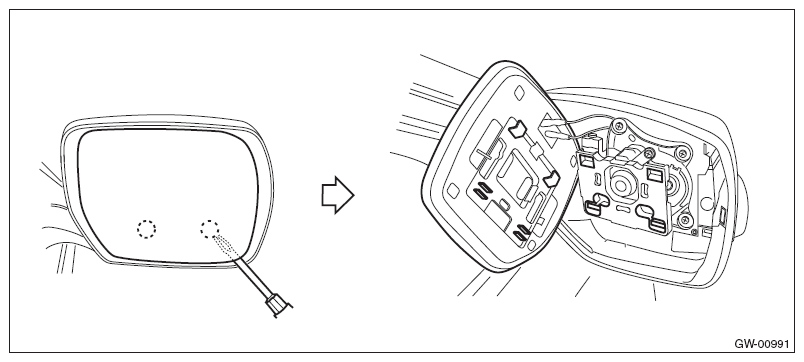

  Fig 1: Removing Mirror Clip Using Flat Tip Screwdriver
  Courtesy of SUBARU OF AMERICA, INC.
2. Disconnect the mirror heater connector. (Model with mirror heater)

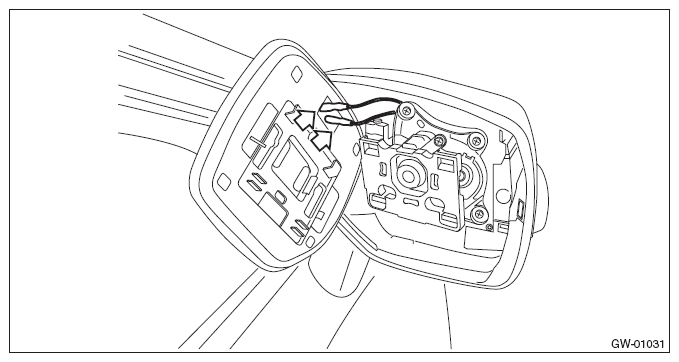

Fig 2: Disconnecting Mirror Heater Connector (Model With Mirror Heater)
Courtesy of SUBARU OF AMERICA, INC.

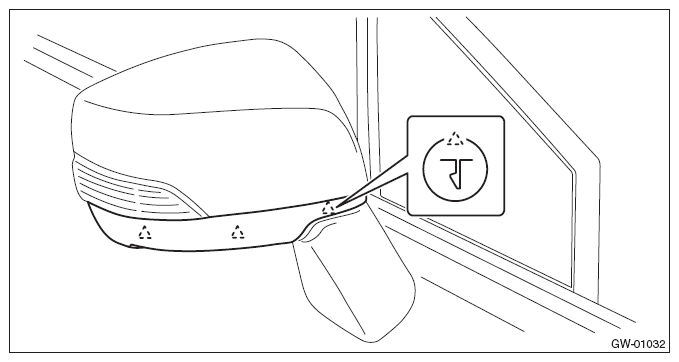

Release the claws, and then remove the cover - cap outer mirror lower.

Fig 3: Identifying Cap Outer Mirror Lower Cover
Courtesy of SUBARU OF AMERICA, INC.

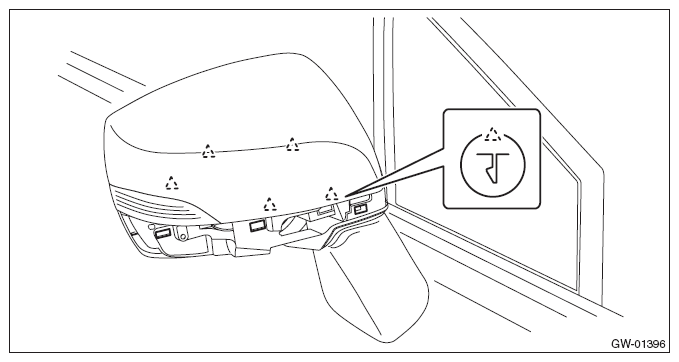

Release the claws, and then remove the cover - cap outer mirror.
CAUTION: Be careful not to apply excessive force when removing the cover - cap outer mirror, as the lower hooks may become damaged.

Fig 4: Identifying Cap Outer Mirror Cover Claws
Courtesy of SUBARU OF AMERICA, INC.
Remove the light assembly - side turn mirror.
1. Remove the screws and pull out the light assembly - side turn mirror to the front of the vehicle.
2. Disconnect the connector and remove the light assembly - side turn mirror.

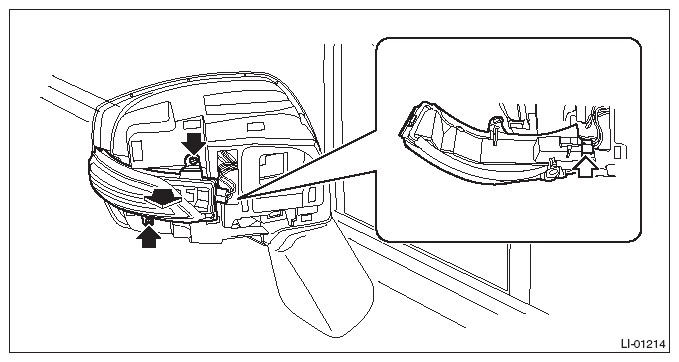

Fig 5: Removing Light Assembly Side Turn Mirror
Courtesy of SUBARU OF AMERICA, INC.
