Front Stabilizer: Removal

  1. Lift up the vehicle, and then remove the left and right front wheels.
  2. Remove the front under cover. < Ref. to REMOVAL , Front Under Cover. >
  3. Remove the front stabilizer.
    1. Remove the left and right stabilizer links.
      Fig 1: Locating Left And Right Stabilizer Links
      G10276617Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the left and right stabilizer brackets.
      Fig 2: Locating Left And Right Stabilizer Brackets
      G06654897Courtesy of SUBARU OF AMERICA, INC.
    3. Turn the front stabilizer by approximately 180° toward the front of the vehicle and pull out the front stabilizer from the right side of the vehicle.

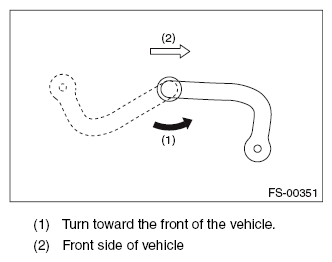

      Fig 3: Turning Front Stabilizer
      G10314619Courtesy of SUBARU OF AMERICA, INC.
