Wheel Alignment: Inspection: Caster

  1. Place the front wheel on the turning radius gauge. Make sure the ground contact surfaces of the front and rear wheels are at the same height.
  2. Set the adapter into the center of wheel, and then set the wheel alignment gauge.

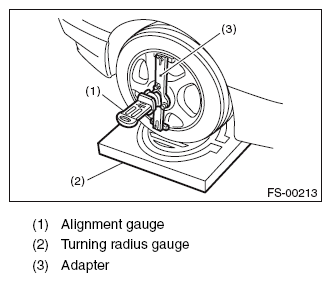

    Fig 1: Placing Front Wheel On Turning Radius Gauge
    G10314574Courtesy of SUBARU OF AMERICA, INC.
  3. Measure the caster angle in accordance with the operation manual for wheel alignment gauge.
    Tire size Caster
    Sedan model P225/55R17
    P225/50R18    		 5°50'
    OUTBACK model P225/65R17
    P225/60R18    		 5°00'
