Windshield Glass: Installation

CAUTION:
  • For model with EyeSight, always use Subaru genuine windshield glass specially designed for Eyesight. (If the windshield glass other than the glass specially designed for EyeSight is used, the visibility of the camera is blocked or the distortion of the glass prevents the correct measurement of the object, resulting in the EyeSight abnormal operation.)
  • For model with EyeSight, if the windshield glass is installed after removal or replaced, always perform the "Inspection" and "Adjustment and check" of the stereo camera.

    Inspection: < Ref. to INSPECTION , General Description. >

    Adjustment and check: < Ref. to CAMERA ADJUSTMENT, INSPECTION . >

  • For model with EyeSight, if the damage is found in the glass repair prohibited area, always replace the glass. Damage in the prohibited area can affect the recognition of the stereo camera even if it is repaired, and thereby EyeSight function may not operate properly.
  1. Fabricate the cartridge nozzle tip as shown and set the sealant gun with the adhesive.

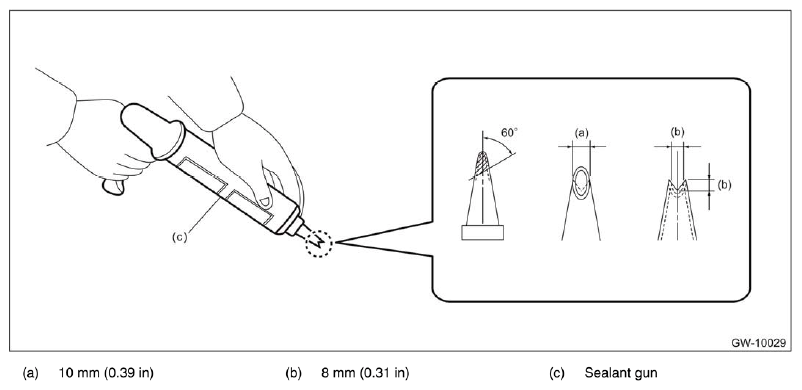

    Fig 1: Checking Cartridge Nozzle Tip
    G10298779Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the adhesive layer on the body using cutter knife to obtain smooth face of 2 mm (0.08 in) thick.
    CAUTION:
    • Be careful not to damage the body and paint surface.
    • Be sure to keep some amount of old adhesive.

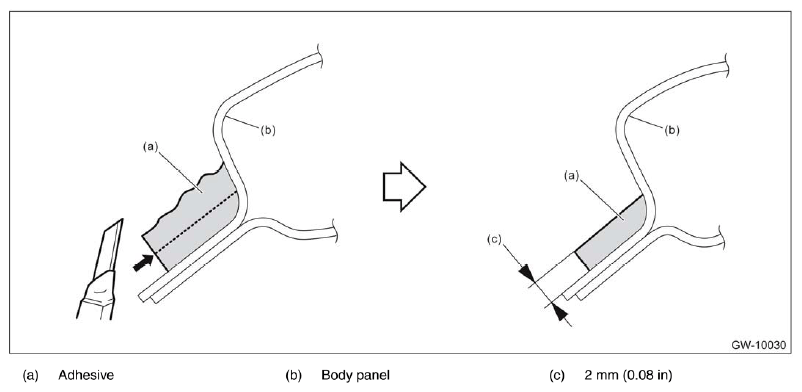

    Fig 2: Removing Adhesive Layer On Body Using Cutter Knife
    G10298780Courtesy of SUBARU OF AMERICA, INC.
  3. Clean the glass - front window and the body with alcohol or appropriate cleaning solvent to completely eliminate cutting powder, dust and dirt.
  4. Attach the dam rubber - front to the glass - front window.
    CAUTION:
    • Attach the driver's side dam rubber - front lower to the constant distance of 19.1 mm (0.75 in) from the glass end.
    • Attach the passenger's side dam rubber - front lower straight between the dam rubber set marks while aligning with the dam rubber set mark.

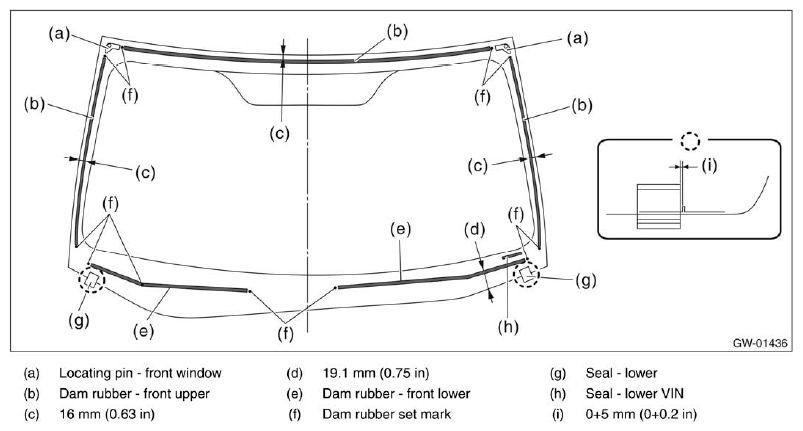

    Fig 3: Aligning Passenger Side Dam Rubber With Mark
    G10298781Courtesy of SUBARU OF AMERICA, INC.
  5. Attach the molding - front window to the glass - front window.
    CAUTION: Be careful to attach the molding - front window so that the molding has no loose or undulating part.

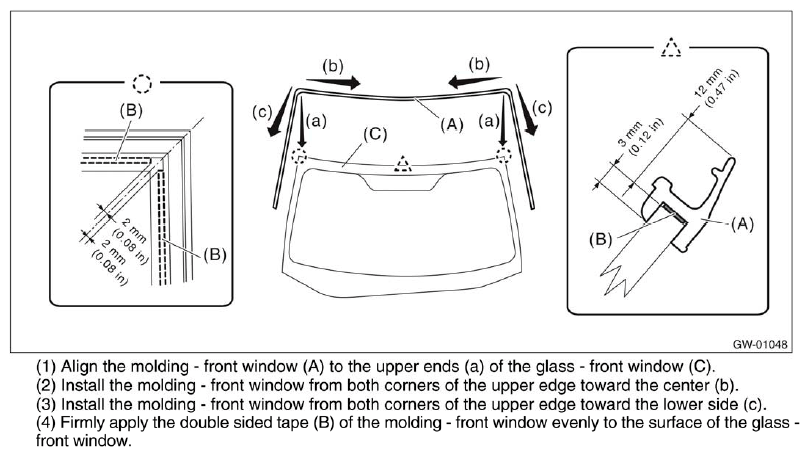

    Fig 4: Attaching Molding Front Window To Glass
    G10298782Courtesy of SUBARU OF AMERICA, INC.
    1. Align the molding - front window (A) to the upper ends (a) of the glass - front window (C).
    2. Install the molding - front window from both corners of the upper edge toward the center (b).
    3. Install the molding - front window from both corners of the upper edge toward the lower side (c).
    4. Firmly apply the double sided tape (B) of the molding - front window evenly to the surface of the glass - front window.
  6. Attach the seal - upper to the molding - front window.

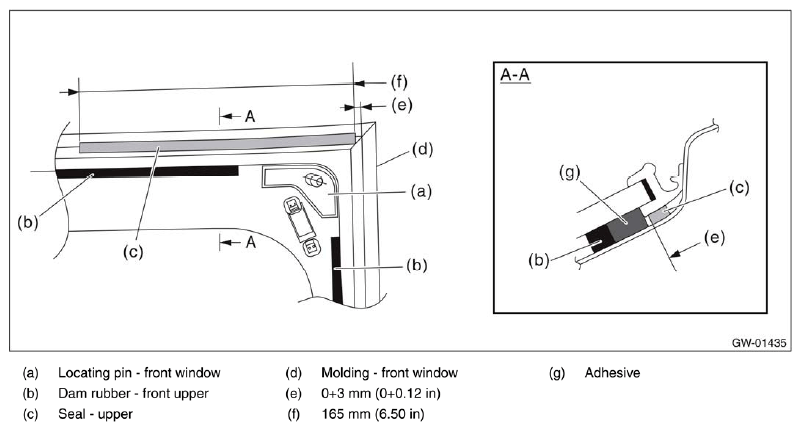

    Fig 5: Attaching Seal - Upper To Molding (Front Window)
    G10298783Courtesy of SUBARU OF AMERICA, INC.
  7. Install the glass - front window.
    1. Apply the primer to the adhesive surface of glass - front window side and body side using sponge.
      CAUTION: Do not apply primer to adhesive remaining on the body side.

      Glass primer:

      Dow Automotive's

      ESSEX U-401, U-402 or equivalent

      Painted surface primer:

      Dow Automotive's

      ESSEX U-413 or equivalent

      NOTE:
      • Primer once attached to the painted surface of the body and internal trim is hard to wipe off. Mask the circumference of such area.
      • Let primer dry for about ten minutes before installing the glass - front window.
      • Do not touch the surface coated with primer.
    2. Apply adhesive to the end back surface of the glass - front window.

      Adhesive:

      Dow Automotive's

      ESSEX U-400HV or equivalent

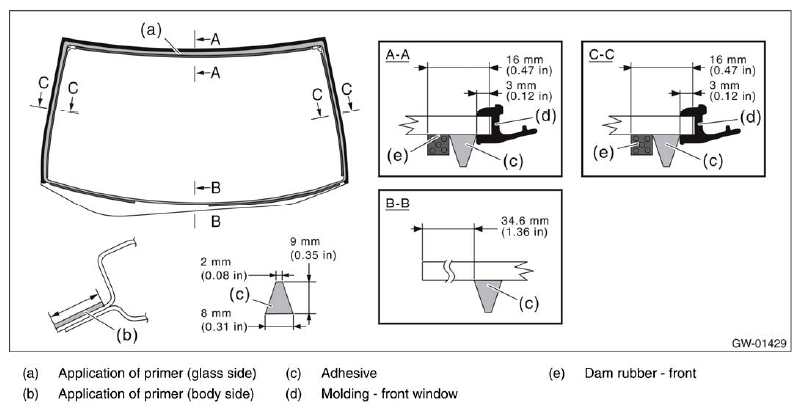

      Fig 6: Identifying Adhesive Applying Dimension To End Back Surface Of Glass - Front Window
      G10298784Courtesy of SUBARU OF AMERICA, INC.
    3. Fit the locating pins - front window to the vehicle body using suction rubber cups to install the windshield glass.
      Fig 7: Installing Windshield Glass Using Suction Rubber
      G06653732Courtesy of SUBARU OF AMERICA, INC.
    4. Lightly press the entire perimeter of the glass - front window for tight fit.
    5. Make flush the adhesive surface jutted out using spatula.
  8. After completion of all work, allow the vehicle to stand for about 24 hours.
    NOTE:
    • When opening/closing the door after the glass - front window was bonded, always lower the glass assembly - door first, and then open/close it carefully.
    • Move the vehicle slowly.
    • For minimum drying time and vehicle standing time before driving after bonding, follow instructions or instruction manual from the adhesive manufacturer.
  9. Connect the wiper deicer connector. (Models with wiper deicer)
  10. Install the cowl panel assembly. < Ref. to INSTALLATION , Cowl Panel. >
  11. Install the stereo camera cover and stereo camera. (Models with EyeSight) < Ref. to INSTALLATION , Stereo Camera. >
  12. Install the trim panel - front pillar UPR. < Ref. to INSTALLATION , Upper Inner Trim. >
  13. Connect the battery ground terminal. (Models with wiper deicer) < Ref. to BATTERY , NOTE, Note. >
    NOTE: For models other than STI model, connect the ground terminal to battery sensor.
  14. After curing of adhesive, pour the water on external surface of vehicle to check that there are no water leaks.
    NOTE: When a vehicle is returned to the user, tell him or her that the vehicle should not be subjected to heavy impact for at least three days.
