Home >> Subaru >> 2016 >> WRX Base >> Repair and Diagnosis >> Brakes >> Traction Control >> Vehicle Dynamics Control (VDC) System >> General Description >> Components With Torque Specifications >> Abs Wheel Speed Sensor

Abs Wheel Speed Sensor

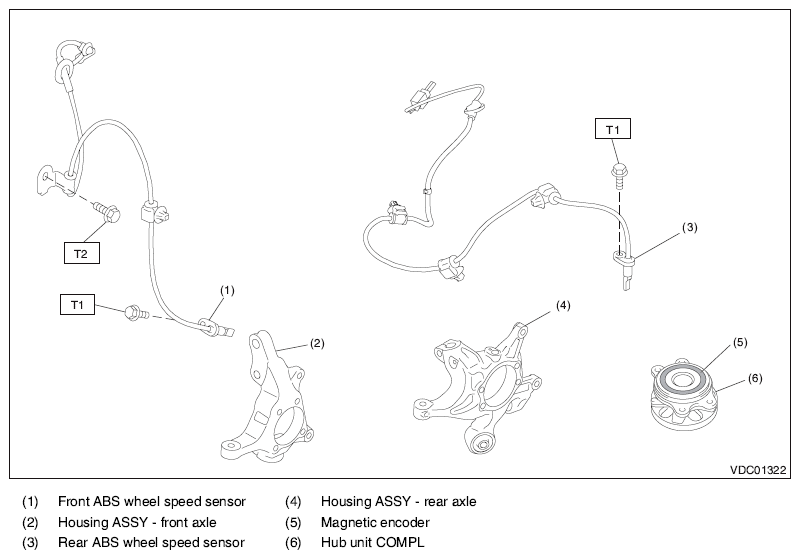

Fig 1: Identifying ABS Wheel Speed Sensor Related Component With Torque Specification
G10297664Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 33(3.4, 24.3)
