Multi Function Display

Disconnect the ground cable from battery. < Ref. to BATTERY , NOTE, Note. >
NOTE: For models other than STI model, disconnect the ground terminal from battery sensor.
Remove the center grille assembly. < Ref. to CENTER GRILLE ASSEMBLY , REMOVAL, Air Vent Grille. >
Release the claw and hook, and then remove the cover center UPR.

Fig 1: Removing Cover Center UPR
Courtesy of SUBARU OF AMERICA, INC.

NOTE: Lightly push up the back of the cover center UPR, hook the finger to the end portion and pull it toward you to remove it.
Remove the multi-function display.
CAUTION: Be careful not to damage the multi-function display or instrument panel.
1. Release the screws and claws.
2. Pull the multi-function display assembly toward yourself, and disconnect the connector.

  Fig 2: Locating Multi-Function Display Assembly Screws
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove the screws and then remove the multi-function display.

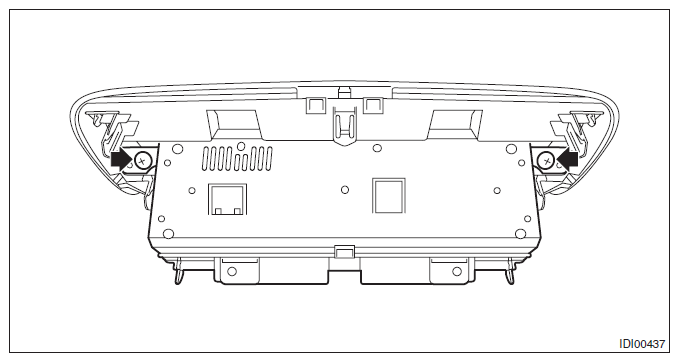

  Fig 3: Locating Multi-Function Display Screws
  Courtesy of SUBARU OF AMERICA, INC.
