Service Limit

Make a measurements as follows. If it exceeds the service limit, replace with a new part.

CAUTION:

When securing the oil pump in a vice, hold the oil pump with the least possible force between two pieces of wood.
Do not set the outside of flow control valve or pulley on a vise; otherwise outside or pulley might be deformed. Select properly sized wood pieces.

Play of the pulley shaft
Condition:

P: When applying a force of 9.8 N (1.0 kgf, 2.2 lbf)

Service limit:

Play in the radial direction (direction <==>)

0.2 mm (0.008 in) or less

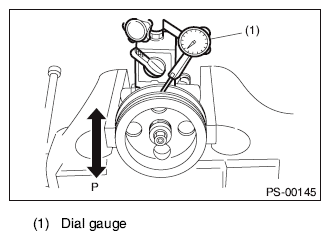

Fig 1: Checking Pulley Shaft Play
Courtesy of SUBARU OF AMERICA, INC.

Axial play (direction <==>)

0.9 mm (0.035 in) or less

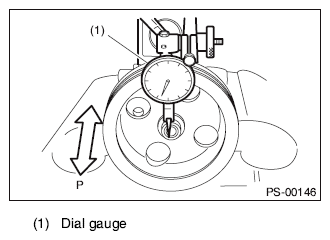

Fig 2: Checking Pulley Shaft Axial Play
Courtesy of SUBARU OF AMERICA, INC.
Deflection of the pulley groove
Service limit:

1.0 mm (0.039 in) or less

NOTE: Read the value on one surface of V groove, set the dial gauge on the other surface, and read the value of the dial gauge.

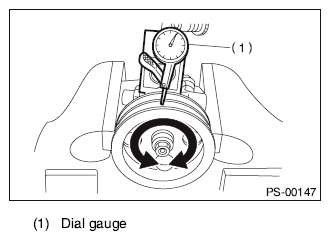

Fig 3: Checking Deflection Of Pulley Groove
Courtesy of SUBARU OF AMERICA, INC.
Rotating resistance of pulley
Service limit:

Maximum load: 9.22 N (0.94 kgf, 2.07 lbf) or less
NOTE:
- A rather higher value may be indicated when pulley starts turning.
- Measure the load during rotation to make a judgment.

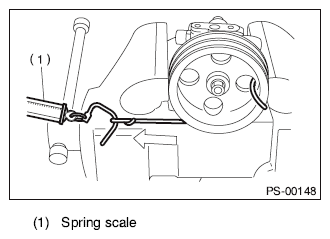

Fig 4: Measuring Spring Scale
Courtesy of SUBARU OF AMERICA, INC.
