Power Steering Control Module: Removal

  1. Disconnect the ground cable from battery. < Ref. to BATTERY , NOTE, Note. >
    NOTE: Disconnect the ground terminal from battery sensor.
  2. Remove the power steering control module.
    1. Disconnect the connector of the power steering control module.
    2. Remove the nuts, and remove the power steering control module.
    3. Remove the bracket - control module.

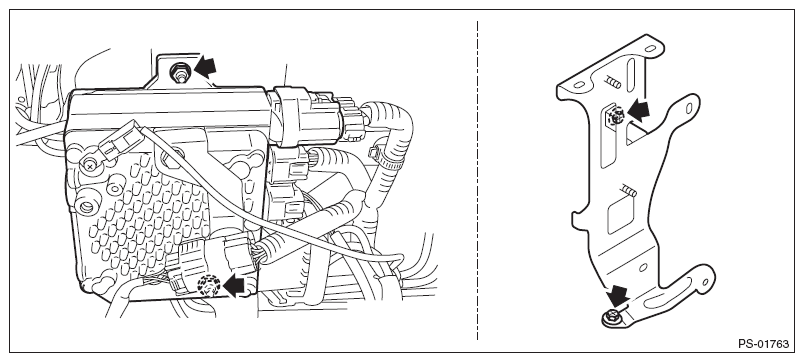

      Fig 1: Locating Nuts And Power Steering Control Module
      G10270226Courtesy of SUBARU OF AMERICA, INC.
