Steering Wheel: Disassembly

Remove the screw, disconnect the connector and remove the paddle shift switch. (Model with paddle shift)

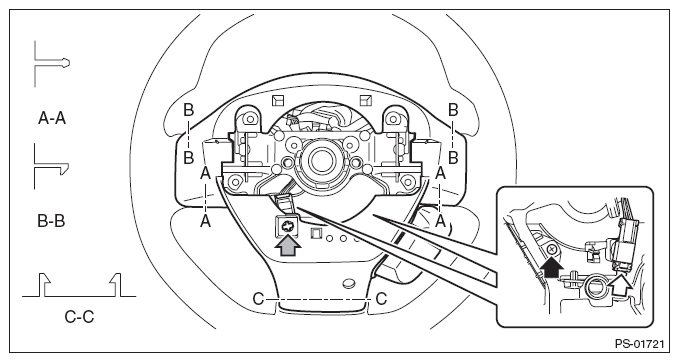

Fig 1: Locating Screws And Paddle Shift Switch Connector
Courtesy of SUBARU OF AMERICA, INC.
Release the claws and clips, detach the cover - steering wheel LWR.
NOTE: For model with steering switch, remove the connector and screw.

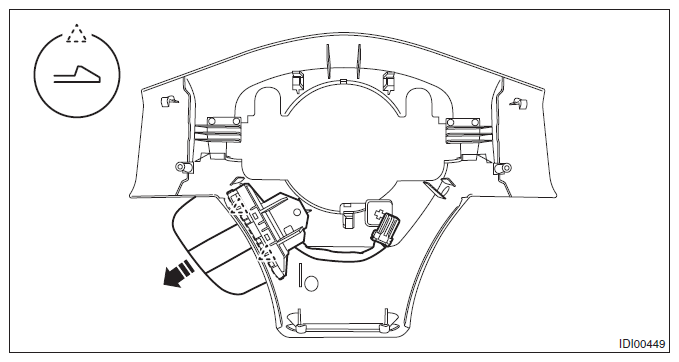

Fig 2: Detaching Cover - Steering Wheel LWR
Courtesy of SUBARU OF AMERICA, INC.
Remove the screws and detach the satellite switch.

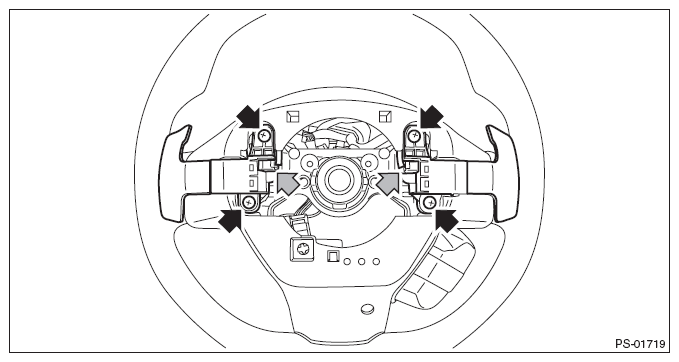

Fig 3: Locating Screws And Satellite Switch
Courtesy of SUBARU OF AMERICA, INC.
Remove the MID switch.

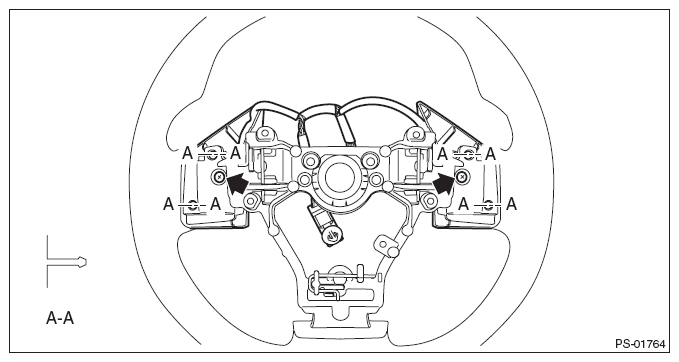

Fig 4: Removing MID Switch
Courtesy of SUBARU OF AMERICA, INC.
