Front Stabilizer: Removal

  1. Lift up the vehicle, and then remove the left and right front wheels.
  2. Remove the under cover - front. < Ref. to REMOVAL , Front Under Cover. >
  3. Remove the front crossmember support. < Ref. to REMOVAL , Front Crossmember Support Plate. >
  4. Remove the front stabilizer.
    1. Remove the left and right stabilizer links.
    2. Remove the clamp - stabilizer bushing on the left and right sides.

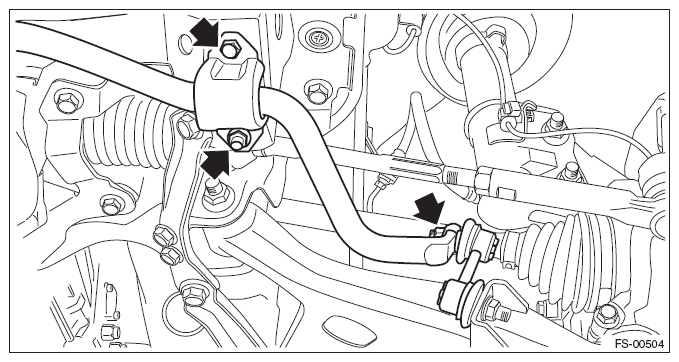

      Fig 1: Locating Clamp - Stabilizer Bushing
      G08318299Courtesy of SUBARU OF AMERICA, INC.
