Wheel Alignment: Inspection: Camber

  1. Place the front wheel on the turning radius gauge.
    NOTE: Make sure the ground contact surfaces of the front and rear wheels are at the same height.
  2. Set the adapter into the center of wheel, and then set the wheel alignment gauge.

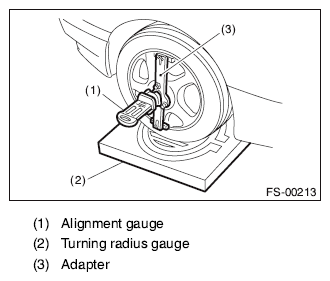

    Fig 1: Checking Camber
    G10294472Courtesy of SUBARU OF AMERICA, INC.
  3. Measure the camber angle in accordance with the operation manual for wheel alignment gauge.
Model Tire size Camber (difference between RH and LH 45' or less)
WRX model 235/45R17 -0°45'±0°45'
245/40R18
STI model 245/40R18
