M/T Clutch System: Flywheel: Removal

  1. Remove the transmission assembly. < Ref. to REMOVAL , Manual Transmission Assembly. > < Ref. to REMOVAL , Manual Transmission Assembly. >
  2. Remove the clutch cover and clutch disc. < Ref. to REMOVAL , Clutch Disc and Cover. >

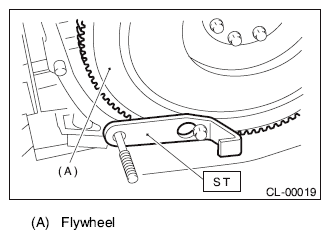

  3. Using the ST, remove the flywheel.

    ST 498497100 CRANKSHAFT STOPPER

    Fig 1: Removing Clutch Cover And Clutch Disc
    G10294379Courtesy of SUBARU OF AMERICA, INC.
  4. Drive out the pilot bearing from the flywheel.
