Master Cylinder

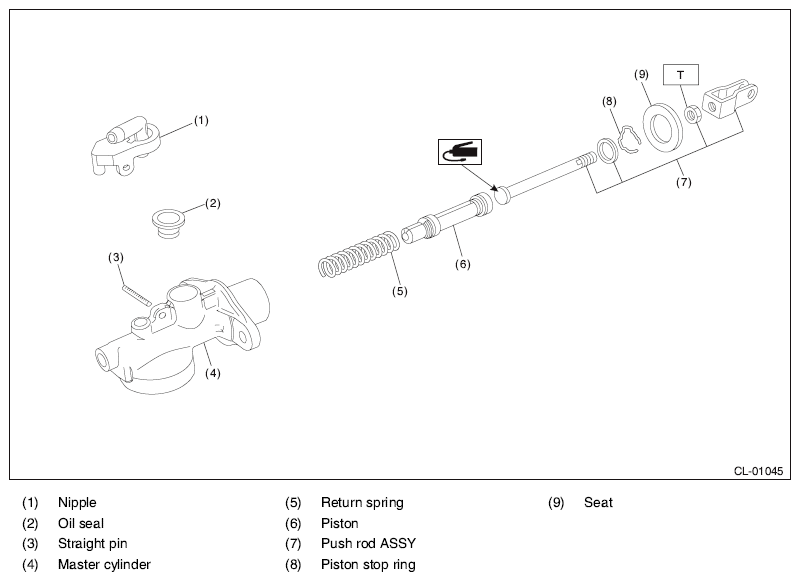

Fig 1: Exploded View Of Master Cylinder With Torque Specification

G10294364

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N. (kgf-m, ft-lb)

T: 10 (1.0, 7.4)
