Operating Cylinder

Except for STI model

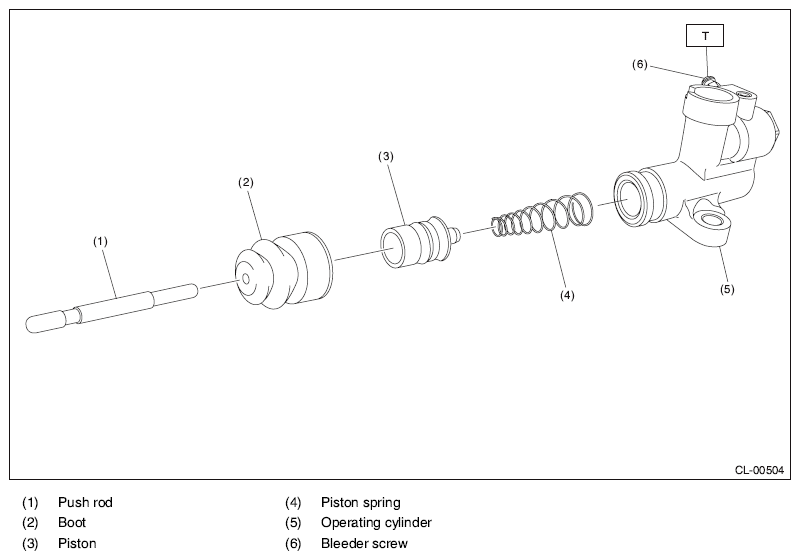

Fig 1: Exploded View Of Operating Cylinder With Torque Specification - Except For STI Model
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N. (kgf-m, ft-lb)

T: 7.8 (0.8, 5.8)
