Pulsation Damper Assembly: Disassembly

Remove the pulsation damper and fuel pipe gasket from the fuel by-pass pipe.

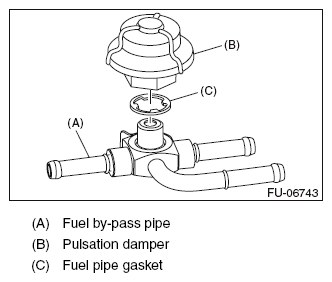

Fig 1: Identifying Pulsation Damper, Fuel Pipe Gasket And Fuel By-Pass Pipe
G10289993Courtesy of SUBARU OF AMERICA, INC.
