Unit inspection

  1. ST relay check
    1. Check the resistance between relay connector terminals.
    RESISTANCE SPECIFICATION

    Inspection terminals Inspection conditions Standard value
    1 - 2 20°C 93.8 to 136.4Ω
    3 - 5 When the battery voltage is not applied to the terminal 1 and terminal 2: 10 k Ωor more
    When the battery voltage is applied to the terminal 1 and terminal 2: Less than 1 Ω

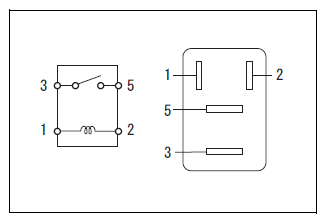

    Fig 1: Checking Resistance Between ST Relay Connector Terminals
    G11259297Courtesy of SUBARU OF AMERICA, INC.
  2. INHIBITOR relay check
    1. Check the resistance between relay connector terminals.
    RESISTANCE SPECIFICATION

    Inspection terminals Inspection conditions Standard value
    1 - 2 20°C 93.8 to 136.4Ω
    3 - 5 When the battery voltage is not applied to the terminal 1 and terminal 2: 10 k Ωor more
    When the battery voltage is applied to the terminal 1 and terminal 2: Less than 1 Ω

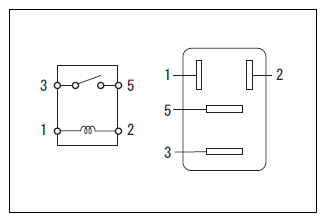

    Fig 2: Checking Resistance Between Inhibitor Relay Connector Terminals
    G11259298Courtesy of SUBARU OF AMERICA, INC.
  3. ST CUT relay check (with smart key system)
    1. Check the resistance between relay connector terminals.
    RESISTANCE SPECIFICATION

    Inspection terminals Inspection conditions Standard value
    1 - 2 20°C 93.8 to 136.4Ω
    3 - 4 When the battery voltage is not applied to the terminal 1 and terminal 2: Less than 1 Ω
    When the battery voltage is applied to the terminal 1 and terminal 2: 10 k Ωor more
    3 - 5 When the battery voltage is not applied to the terminal 1 and terminal 2: 10 k Ωor more
    When the battery voltage is applied to the terminal 1 and terminal 2: Less than 1 Ω

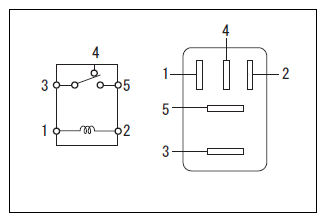

    Fig 3: Checking Resistance Between ST Cut Relay (With Smart Key System) Connector Terminals
    G11259299Courtesy of SUBARU OF AMERICA, INC.
  4. IGS relay check (with smart key system)
    1. Check the resistance between relay connector terminals.
RESISTANCE SPECIFICATION

Inspection terminals Inspection conditions Standard value
1 - 2 20°C 93.8 to 136.4Ω
3 - 5 When the battery voltage is not applied to the terminal 1 and terminal 2: 10 k Ωor more
When the battery voltage is applied to the terminal 1 and terminal 2: Less than 1 Ω
Fig 4: Checking Resistance Between IGS Relay (With Smart Key System) Connector Terminals
G11259300Courtesy of SUBARU OF AMERICA, INC.
