lemon-mirror
:
Home
>>
Subaru
>>
2017
>>
BRZ Limited, Automatic Trans
>>
Repair and Diagnosis
>>
Steering
>>
Steering Column
>>
Steering wheel
>>
Exploded view
Exploded view

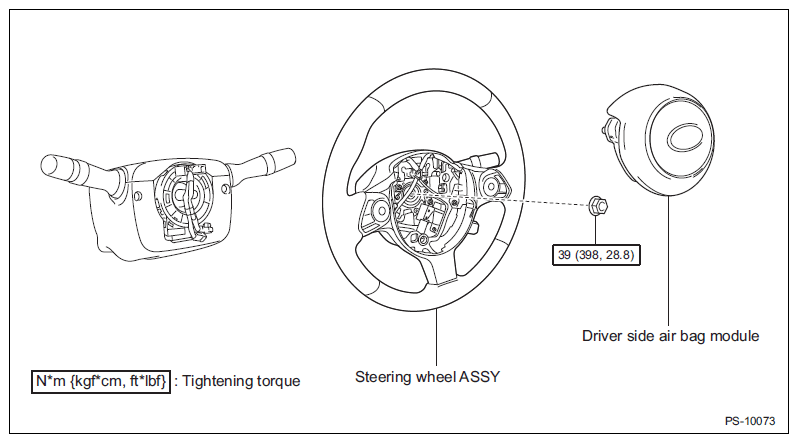

Fig 1: Steering Wheel With Torque Specification (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

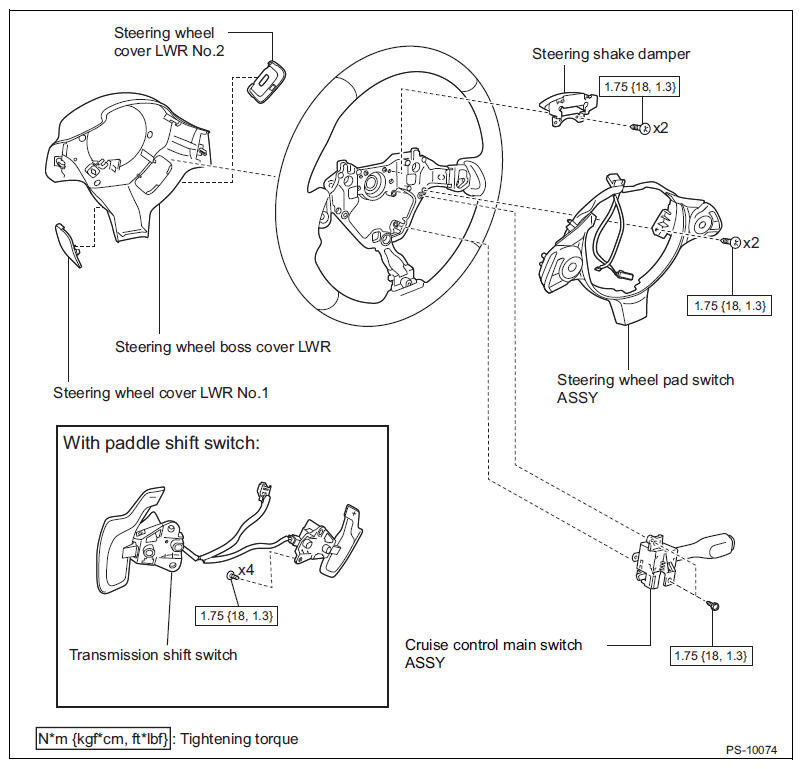

Fig 2: Steering Wheel With Torque Specification (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
