Steering Angle Sensor: Replacement

CAUTION:

If the steering wheel and steering angle sensor are removed, perform the following VDC setting mode.
- Model without EyeSight: VDC sensor midpoint setting mode Ref. to VDC SENSOR MIDPOINT SETTING MODE (MODELS WITHOUT EyeSight) , ADJUSTMENT, VDC Control Module and Hydraulic Control Unit (VDCCM & H/U).
- Model with EyeSight: Neutral of Steering Angle Sensor & Lateral G Sensor 0 point setting mode Ref. to NEUTRAL OF STEERING ANGLE SENSOR & LATERAL G SENSOR 0 POINT SETTING (MODEL WITH EyeSight) , ADJUSTMENT, VDC Control Module and Hydraulic Control Unit (VDCCM & H/U).
- Model with EyeSight: Longitudinal G sensor & lateral G sensor 0 point setting mode Ref. to LONGITUDINAL G SENSOR & LATERAL G SENSOR 0 POINT SETTING MODE (MODEL WITH EyeSight) , ADJUSTMENT, VDC Control Module and Hydraulic Control Unit (VDCCM & H/U).
Before handling the airbag system components, always refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to CAUTION , General Description.
Always use the steering wheel puller for removal to avoid deforming the steering wheel.
If the steering wheel has been removed, make sure that the steering roll connector is not turned from the original position.

Set the tire to the straight-ahead position.
Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to BATTERY .
Remove the driver's airbag module. Ref. to REMOVAL , Driver's Airbag Module.
Remove the steering wheel. Ref. to REMOVAL , Steering Wheel.
Remove the cover assembly - column.
1. Release the screws and claws.
2. Remove the cap - key cylinder (a).
3. Remove the cover assembly - column UPR and the cover assembly - column LWR.

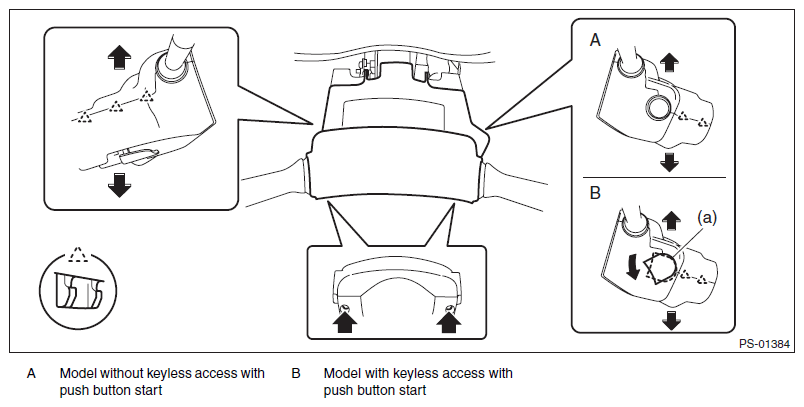

Fig 1: Removing Cover Assembly - Column UPR And Cover Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the steering roll connector.
CAUTION: Make sure that the steering roll connector is not turned from the original position.
1. Disconnect the connector under the steering roll connector.
2. Release the claws and remove the steering roll connector.
Fig 2: Steering Roll Connector Claws Location
Courtesy of SUBARU OF AMERICA, INC.
Remove the steering angle sensor.
1. Release the claws and remove the steering angle sensor (b) from the steering roll connector (a).
Fig 3: Steering Angle Sensor Claws Location
Courtesy of SUBARU OF AMERICA, INC.
Install the steering angle sensor.
1. Apply grease to the protrusion (a) of the new steering angle sensor.
  CAUTION: Do not rotate the steering angle sensor protrusion.

  Fig 4: Applying Grease To Protrusion Of Steering Angle Sensor
  Courtesy of SUBARU OF AMERICA, INC.
2. Align the center of steering roll connector. Ref. to INSTALLATION , Roll Connector.
3. Align the position of the protrusion and install the steering angle sensor to the steering roll connector.
Install each part in the reverse order of removal.
Tightening torque:

Steering wheel: 39 N.m (4.0 kgf-m, 28.8 ft-lb)

Clearance:

Between cover assembly - column and steering wheel: 4 - 6 mm (0.16 - 0.24 in)
Adjust the steering angle sensor. (Models without EyeSight) Ref. to VDC SENSOR MIDPOINT SETTING MODE (MODELS WITHOUT EyeSight) , ADJUSTMENT, VDC Control Module and Hydraulic Control Unit (VDCCM & H/U).
Adjust the steering angle sensor. (Models with EyeSight)
- Neutral of Steering Angle Sensor & Lateral G Sensor 0 point setting Ref. to NEUTRAL OF STEERING ANGLE SENSOR & LATERAL G SENSOR 0 POINT SETTING (MODEL WITH EyeSight) , ADJUSTMENT, VDC Control Module and Hydraulic Control Unit (VDCCM & H/U).
- Longitudinal G sensor & lateral G sensor 0 point setting Ref. to LONGITUDINAL G SENSOR & LATERAL G SENSOR 0 POINT SETTING MODE (MODEL WITH EyeSight) , ADJUSTMENT, VDC Control Module and Hydraulic Control Unit (VDCCM & H/U).
