Engine Wiring Harness: Removal

Release the fuel pressure. Ref. to RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel.
Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the intake manifold. Ref. to REMOVAL , Intake Manifold.
Disconnect the connector from the engine.
- Structural diagram 1

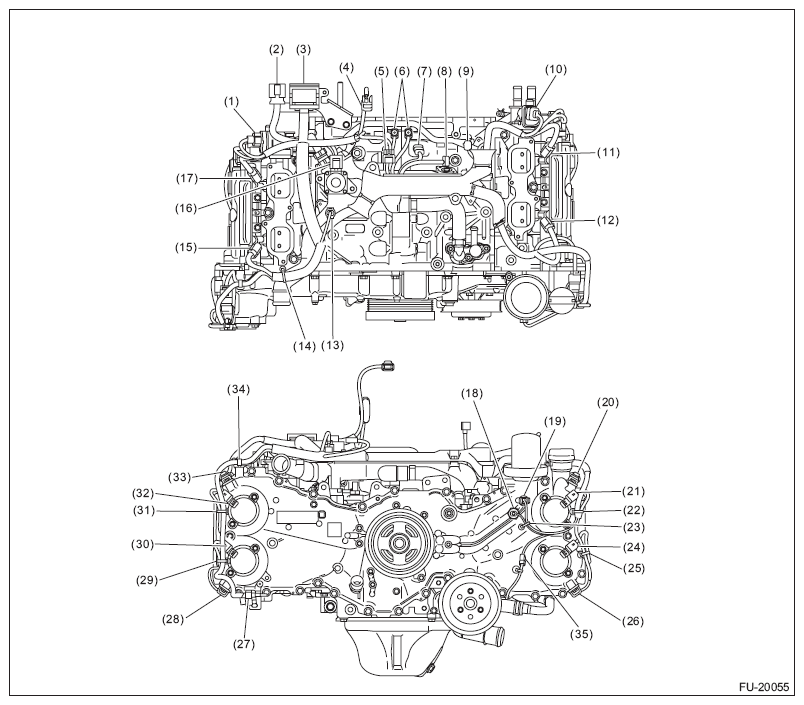

  Fig 2: Engine Wiring Harness Structural Diagram 1 (1 Of 2)
  Courtesy of SUBARU OF AMERICA, INC.

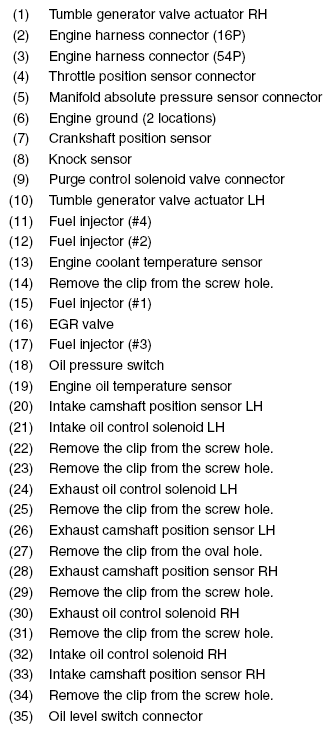

  Fig 3: Engine Wiring Harness Structural Diagram 1 (2 Of 2)
  Courtesy of SUBARU OF AMERICA, INC.
- Structural diagram 2

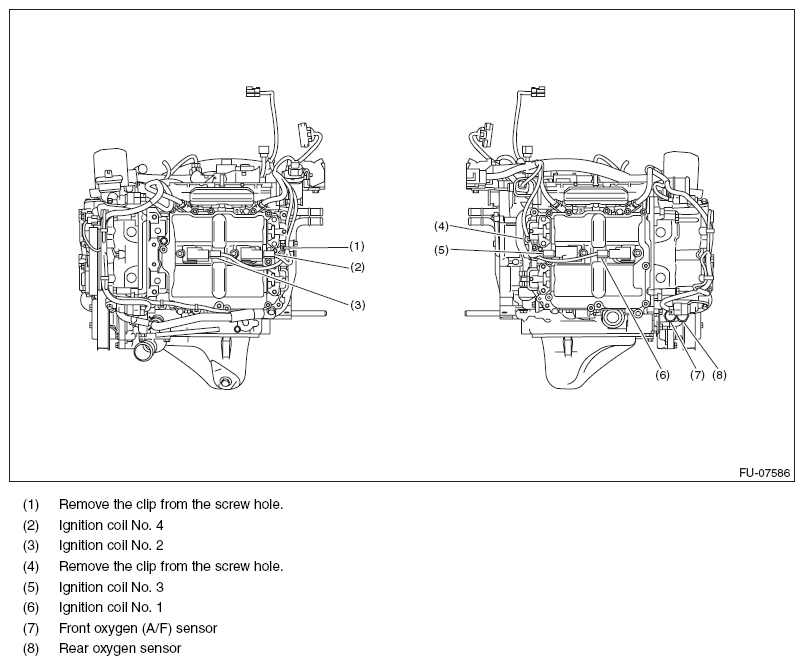

Fig 4: Engine Wiring Harness Structural Diagram 2
Courtesy of SUBARU OF AMERICA, INC.
Remove the engine wiring harness.

Fig 5: Locating Engine Wiring Harness Bracket Bolts

Courtesy of SUBARU OF AMERICA, INC.
