Fuel Filler Pipe: Removal

WARNING: Place "NO OPEN FLAMES" signs near the working area.

CAUTION: Be careful not to spill fuel.

Release the fuel pressure. Ref. to RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel.
Drain fuel. Ref. to DRAINING FUEL (WITH SUBARU SELECT MONITOR) , PROCEDURE, Fuel.
Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Open the fuel filler lid and remove the fuel filler cap.

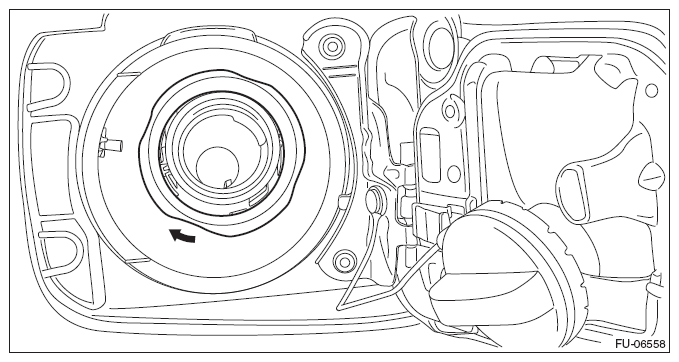

Turn the fuel filler pipe protector in the direction of the arrow to unlock and remove it.

Fig 2: Unlocking Fuel Filler Pipe Protector
Courtesy of SUBARU OF AMERICA, INC.
Remove the rear sub frame assembly. Ref. to REMOVAL , Rear Sub Frame.
Remove the rear mud guard RH. Ref. to REMOVAL , Mud Guard.
Disconnect the fuel filler hose (A) and evaporation hose (B) from the fuel filler pipe assembly.

Fig 3: Fuel Filler Hose And Evaporation Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts and nuts which secure the fuel filler pipe assembly to the vehicle.

Fig 4: Locating Fuel Filler Pipe Assembly Bolts And Nuts
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel filler pipe assembly from the underside of the vehicle.
