Tumble Generator Valve Assembly: Removal

1. Release the fuel pressure. Ref. to RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel.
2. Disconnect the ground cable from battery.
   Fig 1: Disconnecting Ground Cable From Battery

   Courtesy of SUBARU OF AMERICA, INC.
3. Remove the intake manifold. Ref. to REMOVAL , Intake Manifold.
4. Disconnect the connector (A) from the tumble generator valve assembly.
5. Remove the tumble generator valve assembly from the cylinder head.
   • RH side

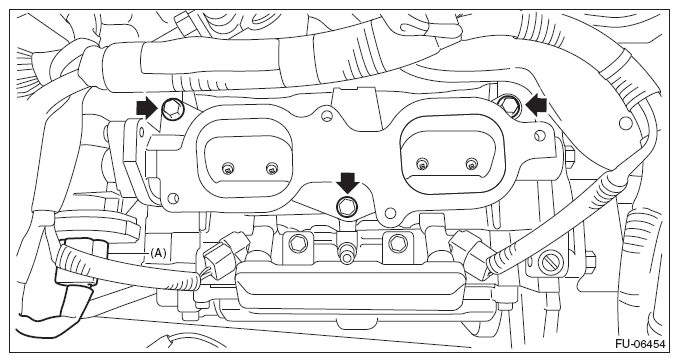

     Fig 2: Locating Tumble Generator Valve Assembly Mounting Bolts (RH Side)

     Courtesy of SUBARU OF AMERICA, INC.
   • LH side

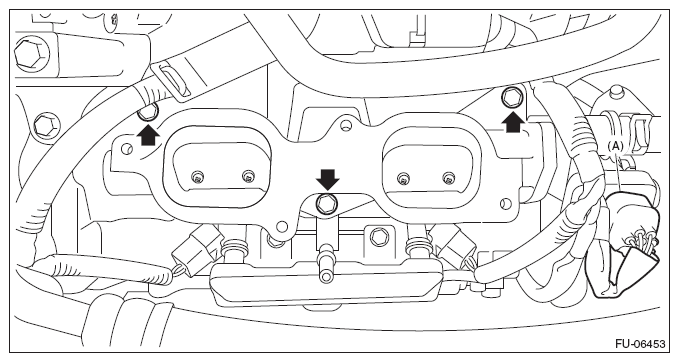

   Fig 3: Locating Tumble Generator Valve Assembly Mounting Bolts (LH Side)

   Courtesy of SUBARU OF AMERICA, INC.

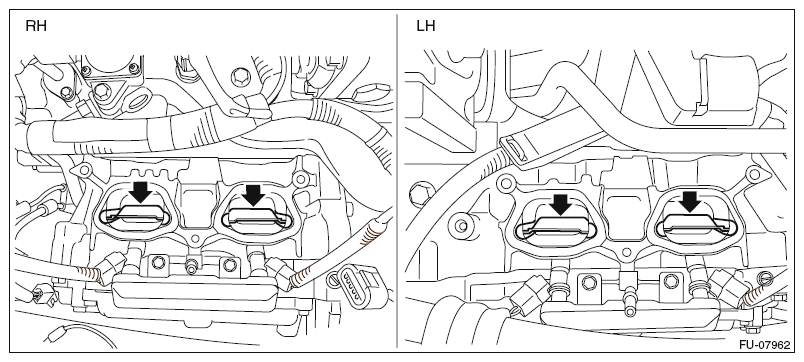

6. Remove the cylinder head plate from cylinder head.

Fig 4: Locating Cylinder Head Plate Of Cylinder Head

Courtesy of SUBARU OF AMERICA, INC.
