RH Side

  1. Disconnect the ground cable from battery. Ref. to BATTERY .
  2. Remove the air cleaner case. Ref. to REMOVAL , Air Cleaner Case.
  3. Disconnect the connector from ignition coil.
    NOTE: While pressing the spring (a) shown in the figure, slide it in the direction of the arrow with a clip remover.
    Fig 1: Pressing Spring
    G10318927Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the ignition coil.

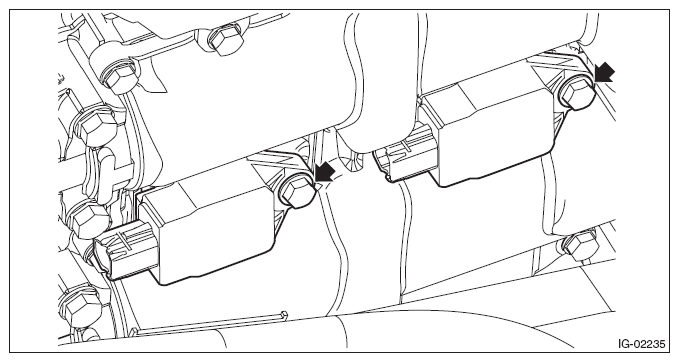

    Fig 2: Locating Connector From Ignition Coil
    G10318928Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the spark plug with a spark plug socket.
