Extension Case: Installation

Clean the mating surface of extension case and transmission case.
Select the transfer drive gear shim. Ref. to ADJUSTMENT , Reduction Drive Gear.
Select the transfer driven gear shim. Ref. to ADJUSTMENT , Transfer Clutch.
Attach the selected transfer drive gear shim to extension case with Vaseline.
Attach the selected transfer driven gear shim to extension case with Vaseline.
Install the O-ring to the transmission case.
NOTE:
- Use new O-rings.
- Apply CVTF to the O-ring.
Fig 1: Locating CVTF O-Ring
Courtesy of SUBARU OF AMERICA, INC.
Apply liquid gasket to extension case seamlessly.
Liquid gasket:

THREE BOND 1215B or equivalent

Fig 2: Applying Liquid Gasket To Extension Case Seamlessly
Courtesy of SUBARU OF AMERICA, INC.
Install the extension case to transmission hanger.
Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

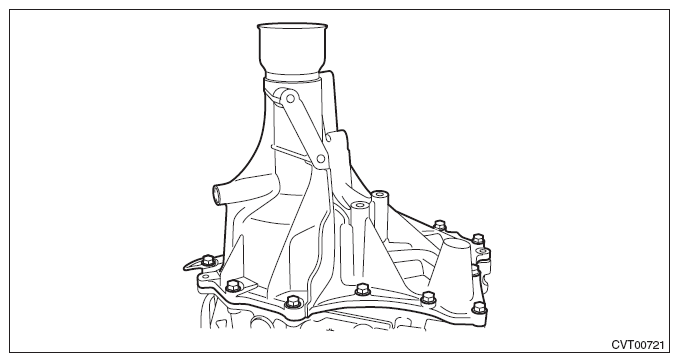

Fig 3: Transmission Hanger Extension Case Cover
Courtesy of SUBARU OF AMERICA, INC.
Install the transmission assembly. Ref. to INSTALLATION , Automatic Transmission Assembly.
