Differential Case Assembly

Remove the taper roller bearing using the ST.
ST1 498077000 REMOVER

ST2 899864100 REMOVER

ST3 398497701 SEAT

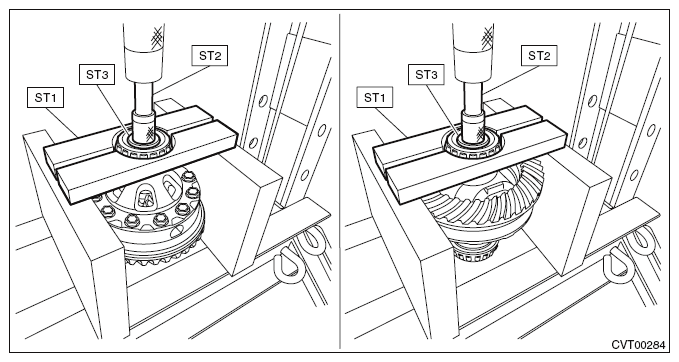

Fig 1: Removing Taper Roller Bearing Using ST
Courtesy of SUBARU OF AMERICA, INC.
Remove the hypoid driven gear mounting bolt using the ST.
ST 18270KA020 SOCKET (E20)

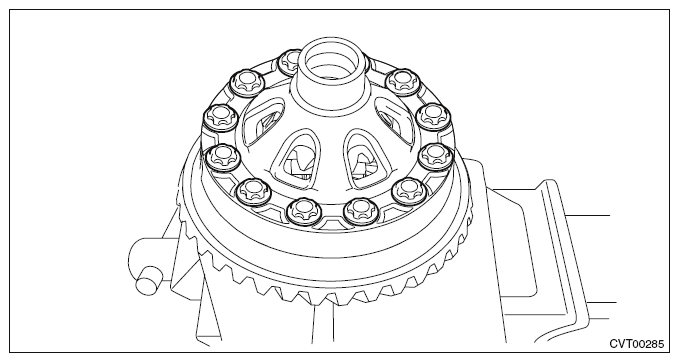

Fig 2: Removing Hypoid Driven Gear Mounting Bolt Using ST
Courtesy of SUBARU OF AMERICA, INC.
Remove the differential case (LH).

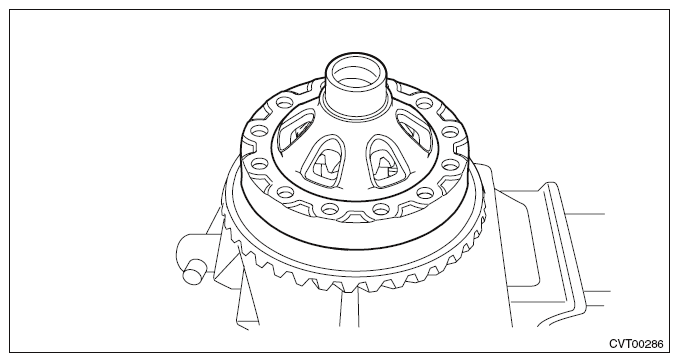

Fig 3: Differential Case (LH)
Courtesy of SUBARU OF AMERICA, INC.
Remove the differential bevel gear and washer from differential case.

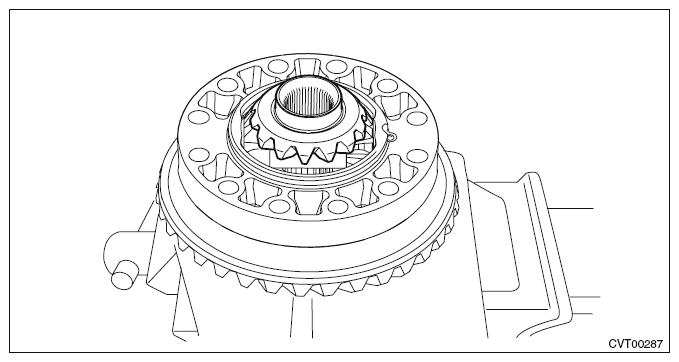

Fig 4: Removing Differential Bevel Gear And Washer From Differential Case
Courtesy of SUBARU OF AMERICA, INC.
Remove the straight pin.

Fig 5: Locating Straight Pin
Courtesy of SUBARU OF AMERICA, INC.
Remove the pinion shaft, then remove the differential bevel gear, washer and differential bevel pinion.

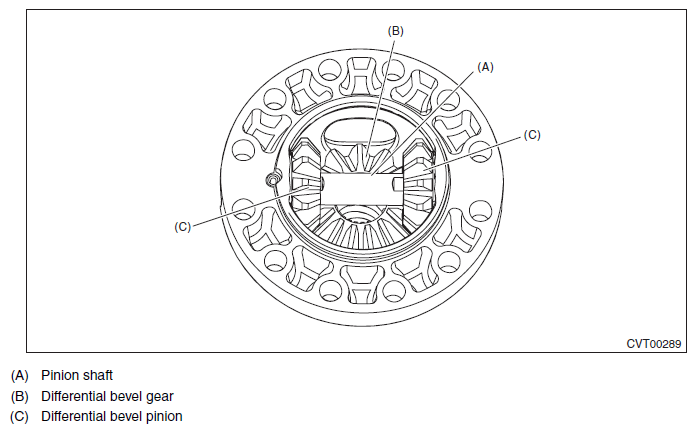

Fig 6: Pinion Shaft, Differential Bevel Gear And Differential Bevel Pinion

Courtesy of SUBARU OF AMERICA, INC.
