Transmission Control Device: Removal

1. Remove the transmission assembly from the vehicle. Ref. to REMOVAL , Automatic Transmission Assembly.
2. Remove the inhibitor switch. Ref. to REMOVAL , Inhibitor Switch.
3. Remove the oil pan and oil strainer. Ref. to REMOVAL , Oil Pan and Strainer.
4. Shift the manual plate to "N" range, and remove the spring pin.
   NOTE: Prevent the spring pin from dropping in the transmission using paper towel etc.
   Fig 1: Locating Spring Pin

   Courtesy of SUBARU OF AMERICA, INC.
5. Remove the detent spring.
   Fig 2: Locating Detent Spring Bolt

   Courtesy of SUBARU OF AMERICA, INC.
6. Remove the bolt, and remove the shifter arm shaft.
   NOTE: Do not damage the lip of oil seal press-fitted in the case.
   Fig 3: Locating Shifter Arm Shaft Bolt

   Courtesy of SUBARU OF AMERICA, INC.
7. Remove the manual plate from the shifter arm shaft, and remove the shift connecting rod of the manual valve.

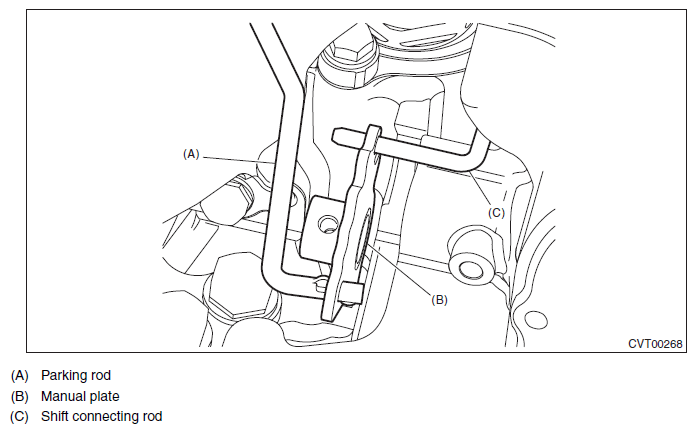

   Fig 4: Removing Shift Connecting Rod Of Manual Valve

   Courtesy of SUBARU OF AMERICA, INC.
8. Remove the manual plate and parking rod.
9. Remove the manual valve.
   Fig 5: Identifying Manual Valve

   Courtesy of SUBARU OF AMERICA, INC.
10. Remove the extension case. Ref. to REMOVAL , Extension Case.
11. Remove the parking support.

Fig 6: Locating Parking Support Bolts

Courtesy of SUBARU OF AMERICA, INC.
