Transmission Control Module (TCM): Removal

1. Disconnect the ground cable from battery. Ref. to BATTERY .
   NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
2. Remove the instrument panel lower cover. Ref. to REMOVAL , Instrument Panel Lower Cover.

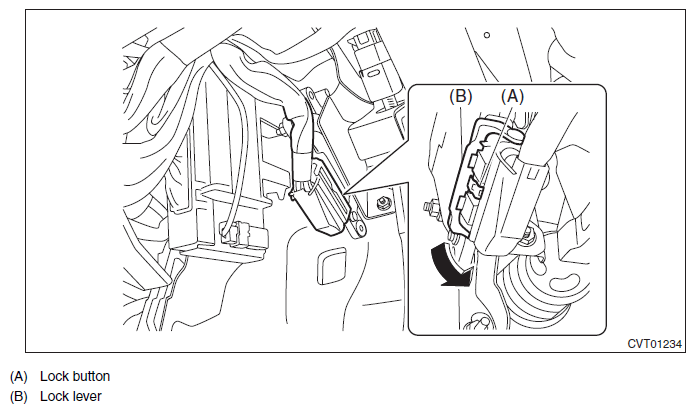

3. Move the lock lever in the arrow direction while pressing the lock button, and disconnect the connector.
   Fig 1: Moving Lock Lever

   Courtesy of SUBARU OF AMERICA, INC.

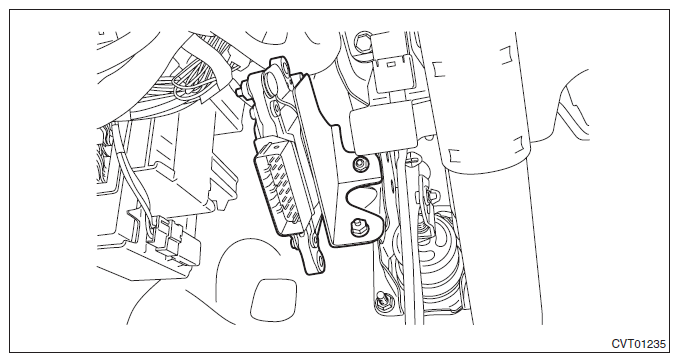

4. Remove the TCM.
   Fig 2: Transmission Control Module

   Courtesy of SUBARU OF AMERICA, INC.

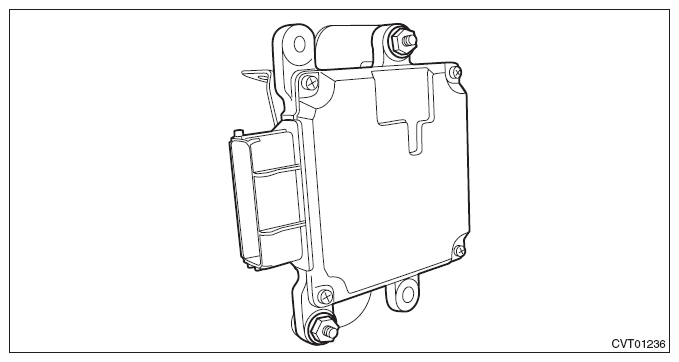

5. Remove the TCM from the bracket.

Fig 3: Transmission Control Module Bracket

Courtesy of SUBARU OF AMERICA, INC.
