Fuel Injector Relay: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the cover from the relay block on the front side of the front strut RH.

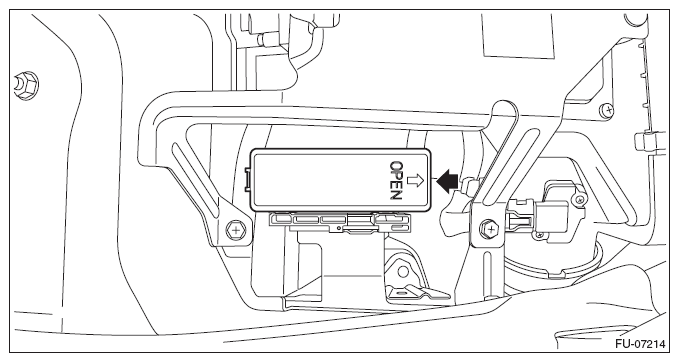

    Fig 1: Locating Relay Block Cover
    G09479806Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the fuel injector relay from relay block.
Fig 2: Locating Fuel Injector Relay From Relay Block
G09479807Courtesy of SUBARU OF AMERICA, INC.
