Intake Manifold Assembly: Disassembly

1. Remove the throttle body. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Throttle Body>REMOVAL .
2. Remove the EGR pipe. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DO)>EGR Pipe>REMOVAL .
3. Remove the EGR control valve. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DO)>EGR Control Valve>REMOVAL .
4. Remove the purge control solenoid valve. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DO)>Purge Control Solenoid Valve>REMOVAL .
5. Remove the manifold absolute pressure sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Manifold Absolute Pressure Sensor>REMOVAL .
6. Remove the fuel delivery pipe assembly from the intake manifold assembly.
   NOTE: Disconnect the quick connector as shown in the figure.

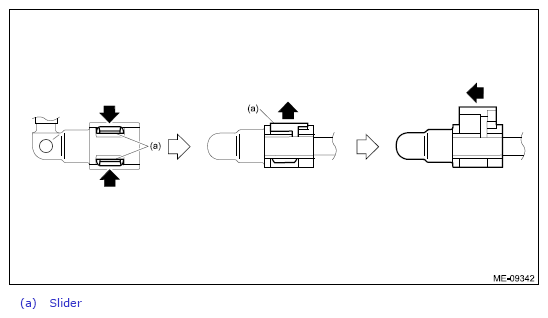

   Fig 1: Disconnecting Quick Connector

   Courtesy of SUBARU OF AMERICA, INC.
   Fig 2: Locating Quick Connector

   Courtesy of SUBARU OF AMERICA, INC.
7. Remove the fuel pipe assembly and cap (A) from the intake manifold assembly.

Fig 3: Locating Fuel Pipe Assembly Bolt

Courtesy of SUBARU OF AMERICA, INC.
