Fuel Line

• Fuel line 1

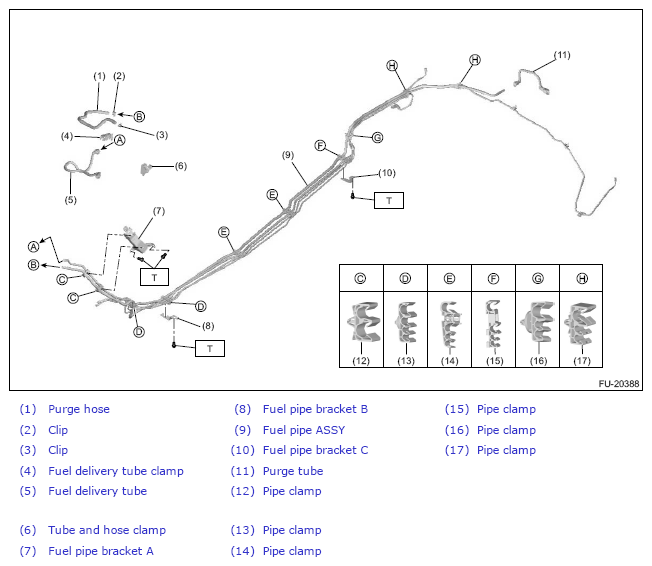

  Fig 1: Identifying Fuel Line Components (1)

  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T: 18 (1.8, 13.3)

• Fuel line 2

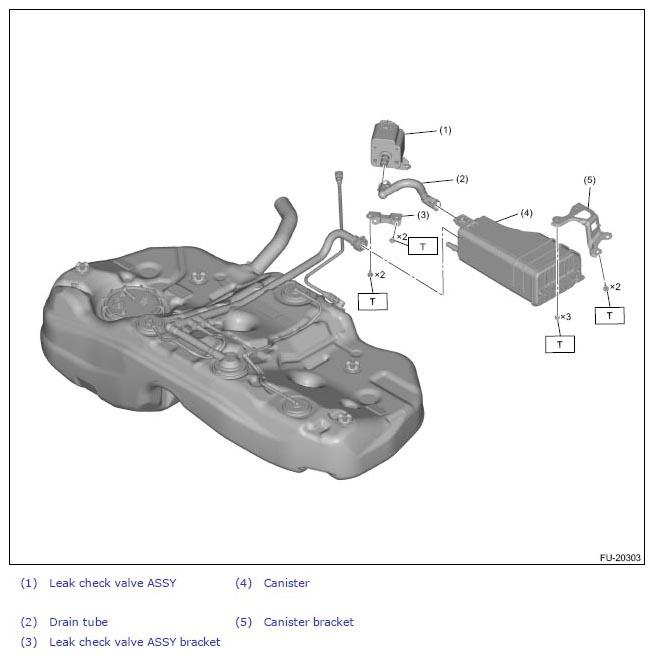

Fig 2: Identifying Fuel Line Components (2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 8 (0.8, 5.9)
