Home >> Subaru >> 2017 >> Impreza Base, 4D Sedan, Standard Trans >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (Diagnostics - Introduction) >> General Description >> System Block Diagram

System Block Diagram

Fig 1: Engine System Block Diagram (1 Of 3)
G11257247Courtesy of SUBARU OF AMERICA, INC.

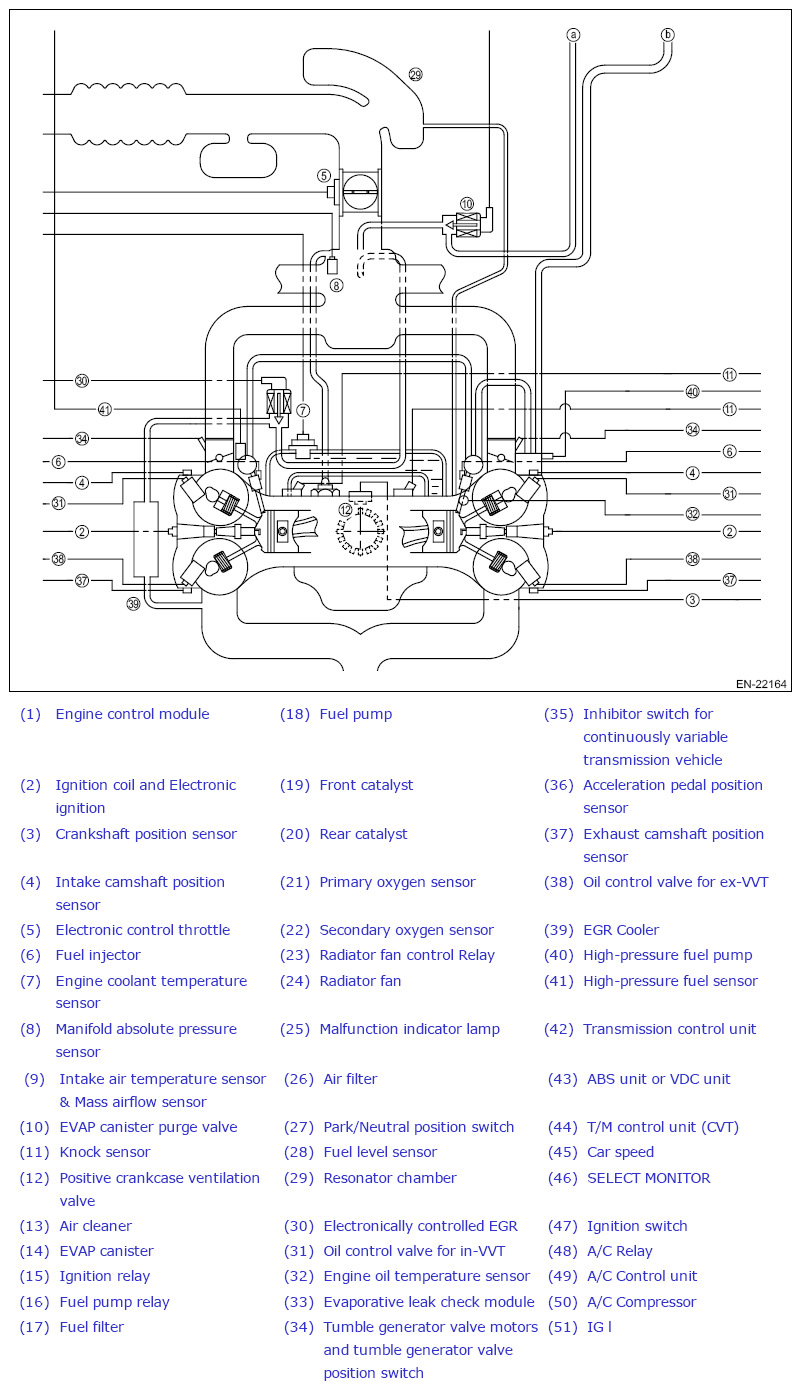

Fig 2: Engine System Block Diagram (2 Of 3)
G11257248Courtesy of SUBARU OF AMERICA, INC.

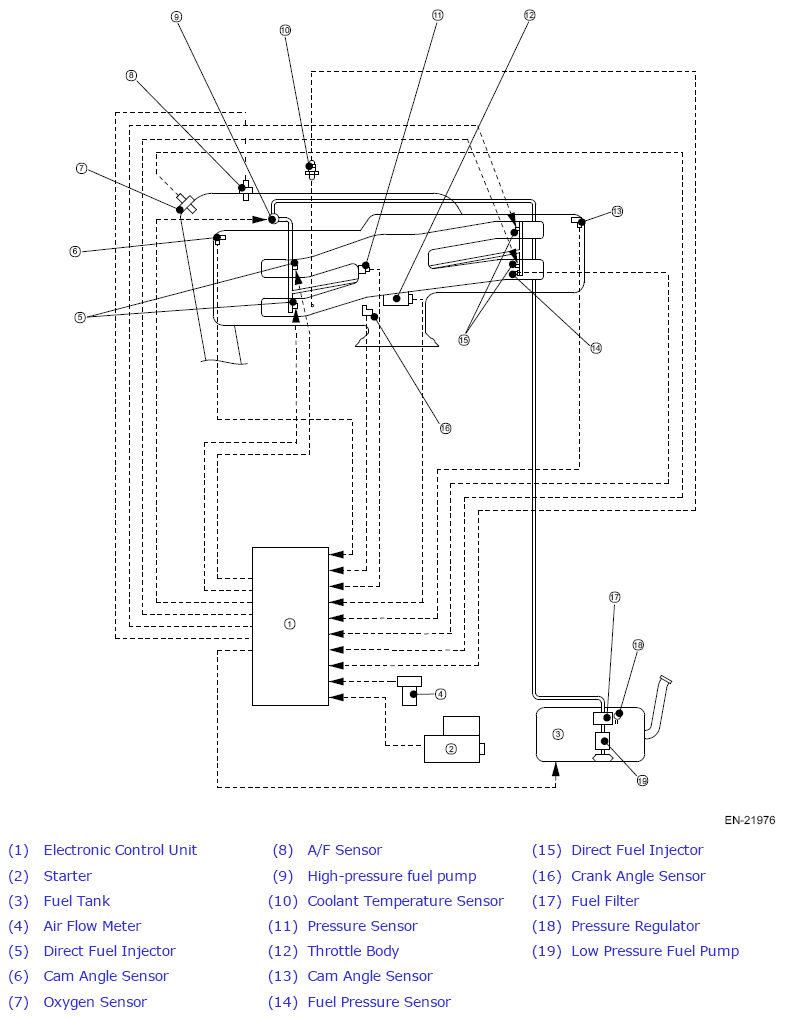

Fig 3: Engine System Block Diagram (3 Of 3)
G11257249Courtesy of SUBARU OF AMERICA, INC.
