Components With Torque Specifications: Mirror

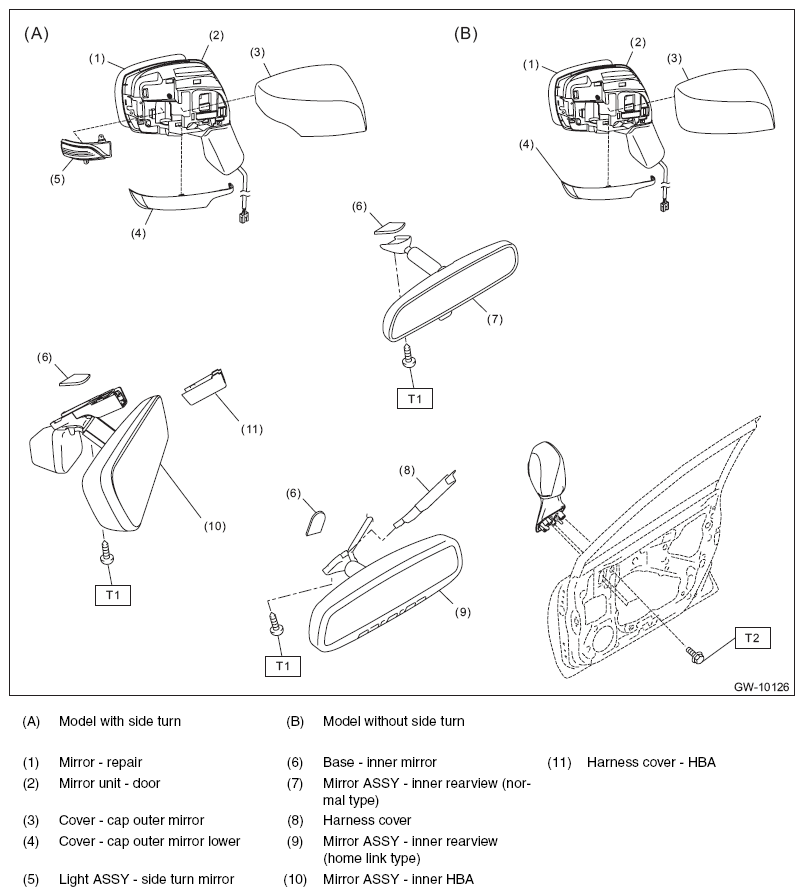

Fig 1: Exploded View Of Mirror

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 2.0 (0.2, 1.5)

T2: 7.5 (0.8, 5.5)

NOTE: Base - inner mirror cannot be removed from the glass - front window.
