Power Window Control Switch: Removal: Sub-Switch

Switch - power window sub front

For removal of the switch - power window sub front on the passenger's seat, proceed to the removal procedure of the switch - power window main. Ref. to MAIN SWITCH , REMOVAL, Power Window Control Switch.

Switch - power window sub rear

1. Disconnect the ground terminal from battery sensor. Ref. to BATTERY
2. Remove the trim panel - rear door. Ref. to REAR DOOR , REMOVAL, Door Trim.
3. Remove the panel - power window sub switch rear.
   CAUTION: Be careful not to damage the trim panel - rear door with the panel - power window sub switch rear.
   1. Insert a sheet of protective paper (a) between panel - power window sub switch rear and trim panel - rear door.
   2. Remove the screws.

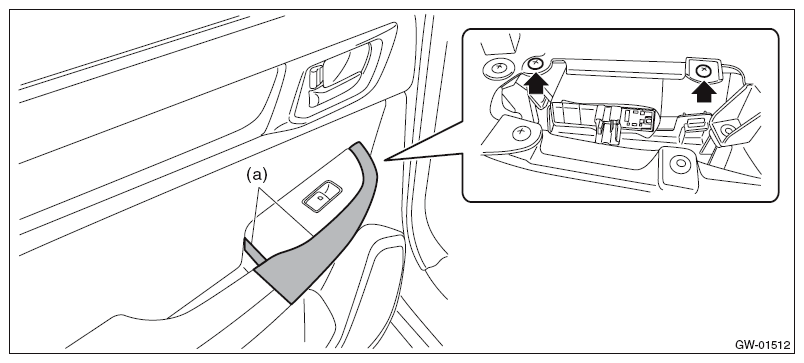

      Fig 1: Identifying Screws

      Courtesy of SUBARU OF AMERICA, INC.
   3. Release the claws, and then remove the panel - power window sub switch rear.

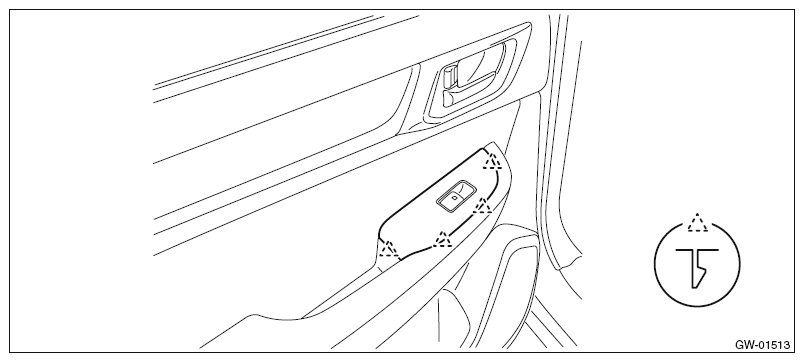

   Fig 2: Identifying Window Sub Switch Rear Panel Claws

   Courtesy of SUBARU OF AMERICA, INC.
4. Release the claws, and then remove the switch - power window sub rear.

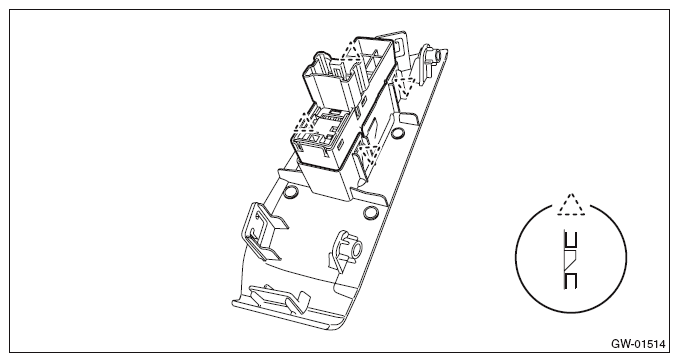

Fig 3: Removing Power Window Sub Rear Switch Claws

Courtesy of SUBARU OF AMERICA, INC.
